This item and type is on request!

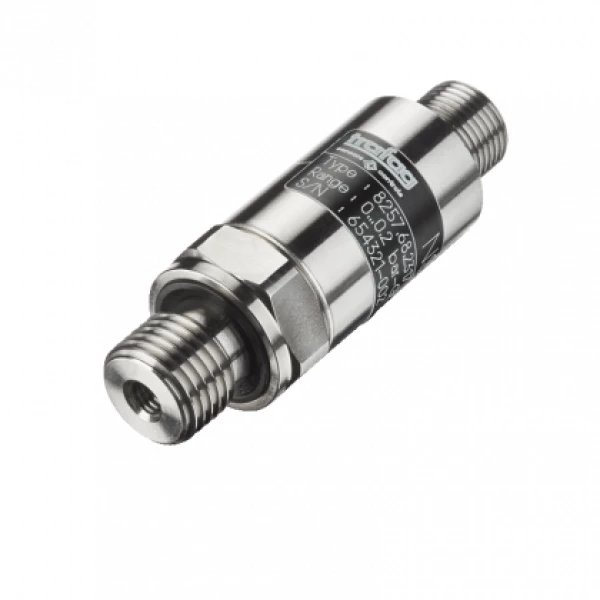

Thin film pressure transmitter NAR-8258
The pressure transmitter NAR 8258 with an increased accuracy of 0.3% is specifically designed for railroad vehicles (EN 50155). The wide temperature range from -40°C to + 125°C and triple overpressure protection make the NAR 8258 the ideal choice for railcars.
- Measuring range: 0 ... 6 to 600 bar
- Pressure connection: G1 / 4 BSP, G1 / 4 "m (pressure gauge), 1/4" NPT m, 7/16"-20UNF SAE4 m, 7/16"-20UNF m, R1 / 4 "m, 10×1 m, M12x1.5 m
- Sensor type: thin film on steel
- Accuracy: ± 0.3% FS NLH (BSL)
- Output: 4 ... 20 mA, switching output: 1 or 2 PNP transistors
- Power: 24 V DC
- Sensor Temp ..: -25 ... + 125 Deg.C
- Electrical connection: M12x1
