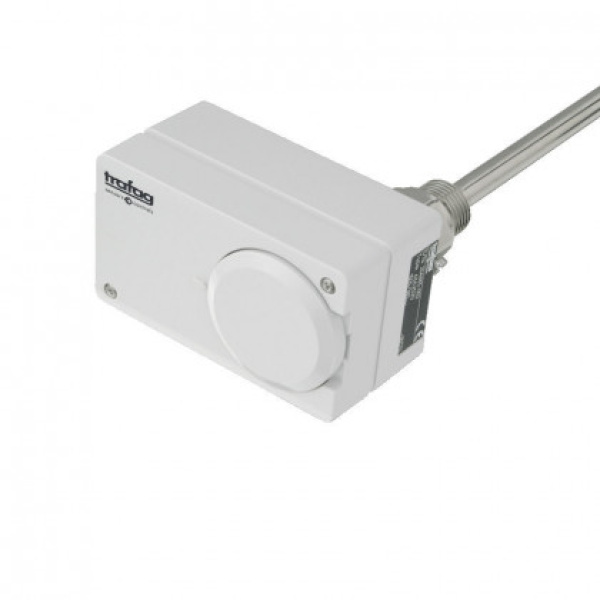

Trafag Thermostat with fixed protective tube MST/634

Trafag Thermostat with fixed protective tube MST/634

Range (°C)

Tube length (mm)

Switching differential

Sensor max.

Clear

Measuring range [°C] : -10 to +150.0
Sensor : mechanical
Protective tube: 110, 150, 400 mm.
Thread: G1/2 BSP
Output: micro switch SPDT
Gear differential: adjustable
Housing : Noryl, IP54
Plug : Pg 11
Ambient temperature [°C] : -30...+70
Accuracy: +/- 2% of full scale

Download specifications

Weight	1 kg
Range (°C)	+20 … +150, +5 … +95, -10 … +80
Tube length (mm)	110, 150, 400
Switching differential	2 ... 12 (adjustable), 2.5 ... 16 (adjustable)
Sensor max.	105, 165, 85
Brand	Trafag
