Ultrasonic weather station, wind, speed, precipitation, lux, Modbus / USM-3

Motionless measurement of wind speed and direction
Very high accuracy
Meteorological parameters:
Wind, Temperature, Rel. Humidity, Baro. pressure, Precipitation, Light (5x).
Low maintenance
Measurement of virtual temperature
Analog and digital outputs
Complete meteorological station
Manufactured from high quality materials

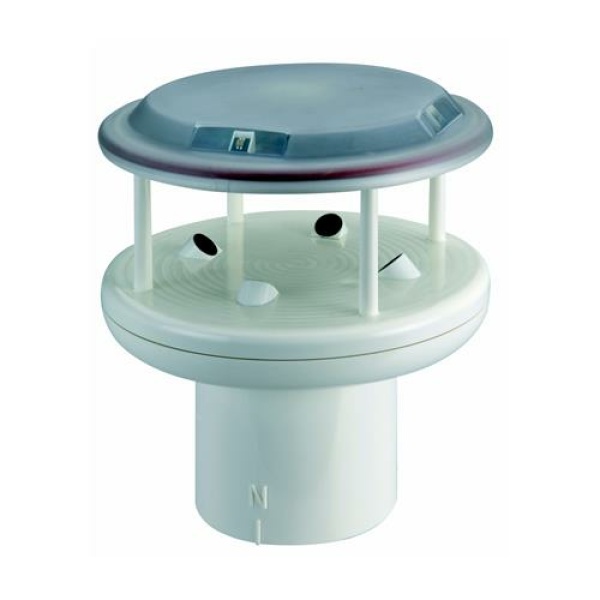

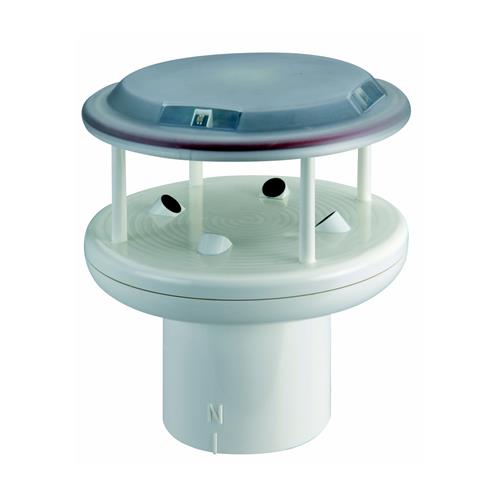

Ultrasonic weather station, USM-3, Wind, Precipitation, Lux, Modbus
The USM is a compact and complete meteorological station.
The meteo station has 4 different versions and is suitable for a wide range of applications where reliable and accurate meteorological parameters need to be measured.

The most complete station measures:
Wind speed and direction, Relative humidity, Temperature, Barometric pressure, Precipitation, 4* Brightness, Dusk and the Virtual temperature.

The USM is equipped with both analog (0-10V) and digital outputs (Modbus).

Applications:

Meteorology
Shipping
Windmills
Off-shore applications
Industry (EMS systems)
Ports
Coastal Surveillance
Building Automation

Measurement ranges: depending on model:

Wind speed	0 ... 60 m/s	+/- 0.1m/s
Wind direction	0 ... 360 o	+/- 1 ^o
Temperature	-30... 70 oC	+/- 0.5K
Rel.humidity	0 … 100%	+/- 3% @10…90%
Baro.print	300 ... 1100 hPa	+/- 0.5 hPa@ 20 ^oC
Light	0 ... 150 kLux	+/- 3% M.W.
Precipitation	0 ... 10 mm/min	0.01 mm res.

Specifications:

Analog	0-10V
Digital	Modbus RTU, ASCII
Nutrition	5-60V DC or 10-42V AC

Model Overview:

Model no.	Precipitation	Brightness	Temperature	Rel. Humidity	Barometric pressure	Analog outputs	Digital outputs
C9200.20	xx	xx	x	x	x	x	x
C.9200.00	x	x	x	x	x	x	x
C.9201.00			x	x	x	x	x
C.9202.00	x	x				x	x
C.9203.00						x	x

All models measure Wind -speed and direction!
xx The USM1+ version is additionally equipped with a ceramic precipitation detector for optimal precipitation detection.
in addition, this transducer calculates the global radiation from the data of the LUX sensors.
