Ultrasonic weather station, wind, temperature, rel. humidity, baro pressure, Modbus / USM-2

Motionless measurement of wind speed and direction
Very high accuracy
Meteorological parameters:
Wind, Temperature, Rel. Humidity, Baro. pressure, Precipitation, Light (5x).
Low maintenance
Measurement of virtual temperature
Analog and digital outputs
Complete meteorological station
Manufactured from high quality materials

Description
Downloads

Ultrasonic weather station, USM-2, Wind, Temperature, Rel. humidity, Baro pressure, Modbus

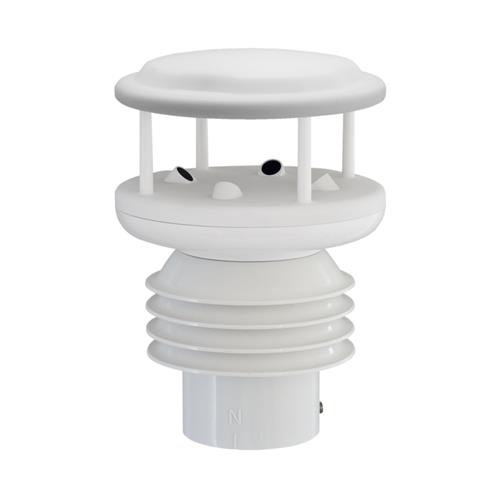

The USM is a compact and complete meteorological station.
The meteo station has 4 different versions and is suitable for a wide range of applications where reliable and accurate meteorological parameters need to be measured.

The most complete station measures:
Wind speed and direction, Relative humidity, Temperature, Barometric pressure, Precipitation, 4* Brightness, Dusk and the Virtual temperature.

The USM is equipped with both analog (0-10V) and digital outputs (Modbus).

Applications:

Meteorology
Shipping
Windmills
Off-shore applications
Industry (EMS systems)
Ports
Coastal Surveillance
Building Automation

Measurement ranges: depending on model:

Wind speed	0 ... 60 m/s	+/- 0.1m/s
Wind direction	0 ... 360 o	+/- 1 ^o
Temperature	-30... 70 oC	+/- 0.5K
Rel.humidity	0 … 100%	+/- 3% @10…90%
Baro.print	300 ... 1100 hPa	+/- 0.5 hPa@ 20 ^oC
Light	0 ... 150 kLux	+/- 3% M.W.
Precipitation	0 ... 10 mm/min	0.01 mm res.
