VDO Pressure sender 0-10 Bar - 1/4″ - VDO 360 081 030 039

Part-number: VDO 360-081-032-003C

Pressure range: 0 to 10 Bar
Thread: M10 x 1 Conical short
Sender resistance range: 10 - 184 Ohms
Sensor signal: 2-pole insulated return
No warning contact

Description
Downloads

Measurement Range: 0 - 10 Bar
Application: VDO Engine Monitoring
Signal Analogue: 10 - 184 Ohms
Operating Voltage: 6 - 24 volts DC
Packaging: VDO Sensor Retail Package
Functionality: Engine Oil Pressure
Communication: Analog
Signal Output: 10 - 184 Ohms
Sensor Signal: Insulated Return
Sensor Connector: M4 Plastic Knurled Nut
Thread:1/4″
Warning Contact: None
Connector Type: M4 Plastic Knurled Nut
Country Of Origin: Germany
Type: VDO 360 081 032 003C

Full technical specifications:

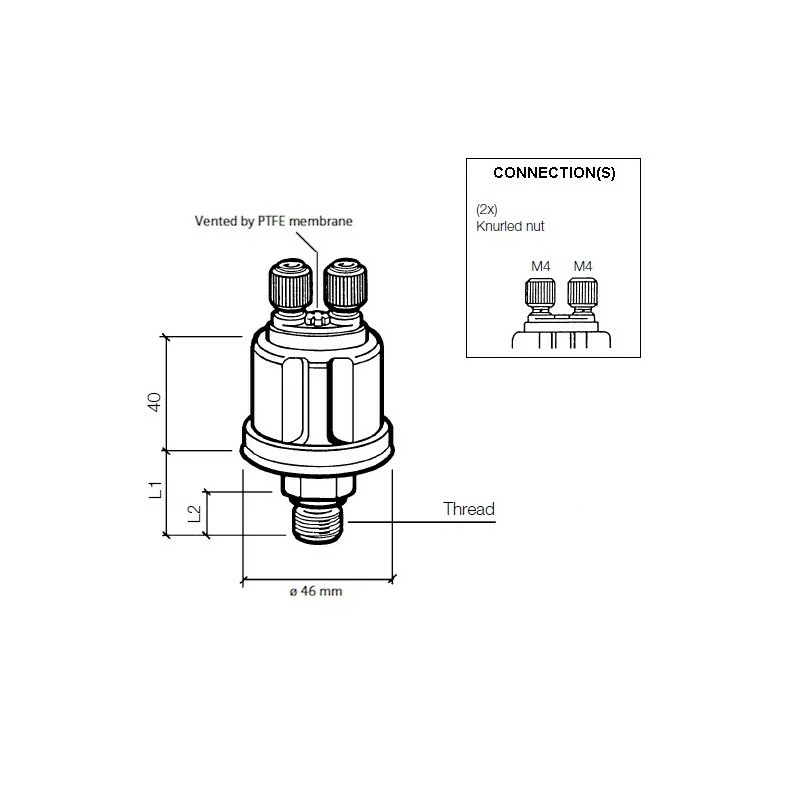

Mechanical features:

Pressure measuring range:	0 - 10 Bar 0 - 145 PSI 0 - 1000 KPa
Maximum pressure:	30 Bar during 2 seconds
Thread	1/4″
Length thread + nut (L1):	19.5 mm
Thread length (L2):	11 mm
Torque:	30 Nm
Operating temperature:	-25 °C to +100 °C
Pressure medium:	Oil - Fuel - Air

Electrical features:

Operating voltage:	6 - 24 V DC
Resistor range:	10 - 184 Ohms

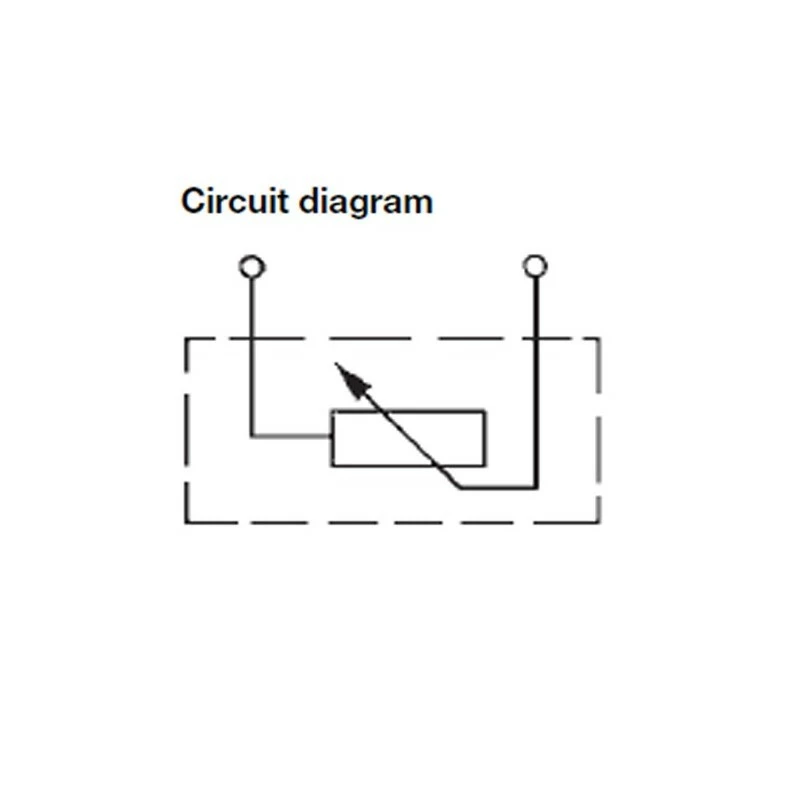

Pressure sensor signal:	Dual-Pole insulated return
Warning contact:	None
Optional warning contact:	VDO A2C59510886 Makepoint Switch
Pressure sender connector:	M4 Plastic knurled nut (2x)

Datasheets and Tables:

VDO 2014 Vehicle Electronics Catalog:	Page 126 - 127
Type of connection:	A

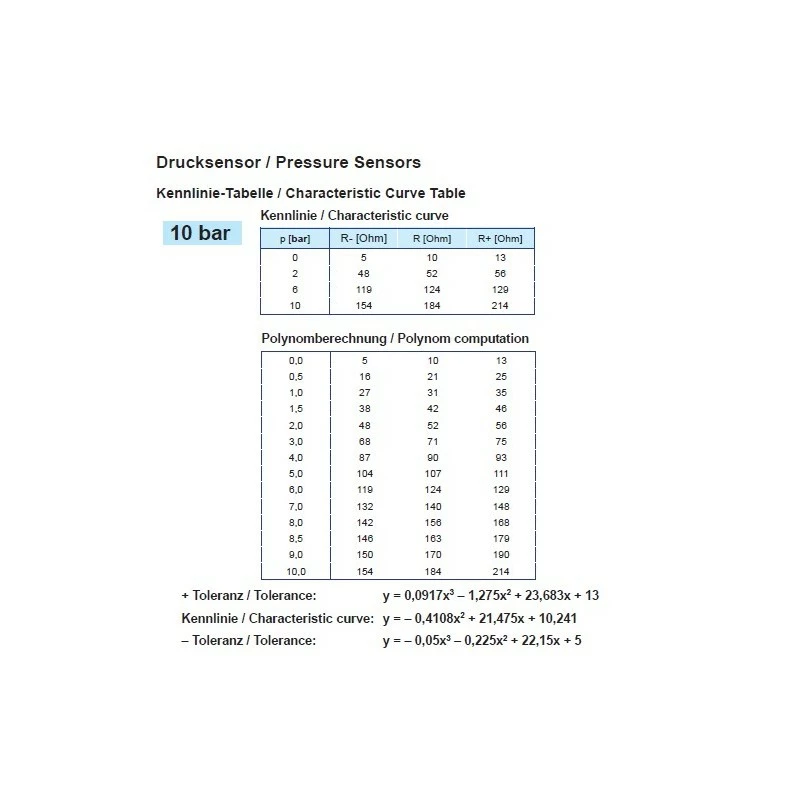

VDO En Du Pressure senders Tables:	VDO Datasheet table 4

Retail package:

VDO 360 081 030 039 Pressure sender
VDO Sensors are - unless otherwise noted -
delivered without connecting material

Logistical information:

HS Code: 90269000
Ean Code: 4103590691149
Weight: 0.12k
