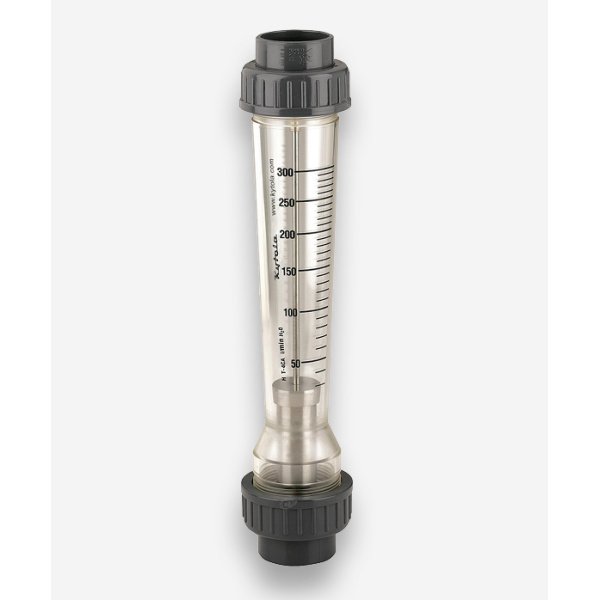

Visual flow meter Type: HT | 0.6 - 6.4 m3/h water PVC 50 mm connection

Technical data
Flow tube	Grilamid (PA-12) (*PES)
Float	AISI 329 or PTFE depending on range Note! Other possible wetted metal parts: AISI 316
Connectors	PVC (*AISI 316, PVDF)
Seals	Nitrile (*Viton^®, EPDM)
Connections	NPT/G 1¼" or 1.97" (50 mm) socket
Maximum pressure	145 psi at 68°F (*145 psi at 176°F )
Maximum temperature	167°F at 29 psi (*248°F at 29 psi)
Weight	36 oz.
*Special construction upon request
