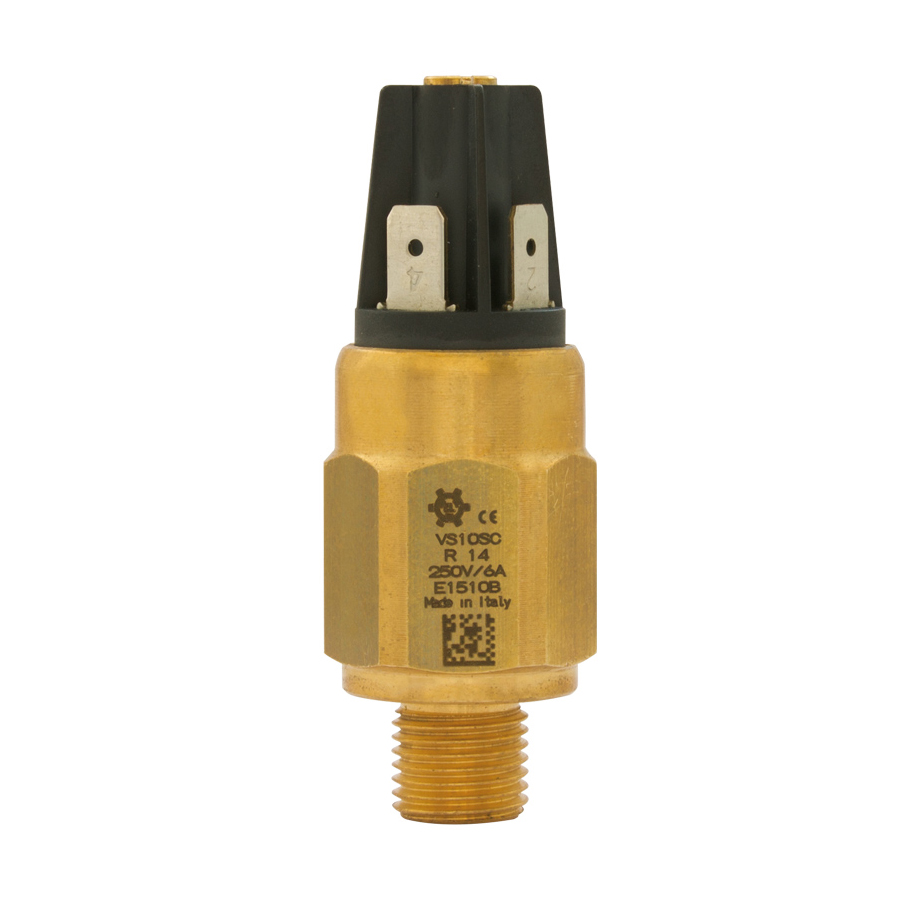

VS – Adjustable vacuum controllers with SPDT contacts

Switch rating	6 (2) A – 250 Vac – 2 (1) A / 24 Vdc
Electrical connection	Faston 6.3 x 0.8
Adjustment range	-200 -500 mbar / -500 -900 mbar
Max. static pressure	20 bar
Hysteresis	Max. 100 mbar
Temperature tange	-30 °C +140 °C (according to diaphragm/seal material)
Contact	SPDT
Body material	Brass – Stainless steel AISI 316
Diaphragm/ Seal material	NBR – FKM – Silicone – HNBR
Threads	G1/8 BSPT – G1/4 BSPT – M10 x 1 – M12 X 1.5 – G 1 /4 BSPP – G 1 /8 BSPP – 1 /4 NPT – 1 / 8 NPT
Protection	IP00 fast on – IP54 with CAP 16 – IP65 with CAP 13
Mechanical life	10⁶ operations
Dimensions	Body Ch 24 – Max. high 71 mm
Certification	CE
Options	Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen
