Water Detector/Temperature/Power Outage with Telephone Notification Mobeye Combi/Ship Guard (CM4600)

For optimal control and surveillance, the Mobeye Combi/Ship Guard CM4600 combines various sensors and signals. A reliable help to monitor risks and limit damage. The user receives a message in case of problems concerning temperature, water level, battery voltage, potential-free sensors and power supply. The detector can run entirely on batteries, or via external power. The built-in communication module works on both the 4G and 2G networks.

At a status change, Mobeye Combi/Ship Guard alarms with a push message, telephone call, SMS and/or e-mail. Various contacts are configurable(5). An 'acknowledgement' by the recipient ensures that the other contacts are no longer called. The Mobeye Combi/Ship Guard works more than a year on a set of batteries. At low battery voltage a message follows. When using an external power source (12 VDC or mains voltage), it also sends 'power failure' notifications.

Versatile Alarm Detector With various sensors and connection options, the Mobeye Combi/Ship Guard offers versatile monitoring. Easy set-up and status viewing via an online portal and app.

• temperature sensor
• water leak sensor
• 2x input for battery voltage or potential-free inputs
• (shore) voltage adapter, or 12-24V DC
• open collector output
• Mobeye Sim, Portal & App service The Mobeye Internet Portal offers a clear dashboard and essential functions, such as push notifications via an app, online programming, setting up notifications, viewing status and history, network strength, events and position (Cell-Id). The 'keep-alive'monitor monitors the entry of test notifications. The included Mobeye SIM card can be activated online.

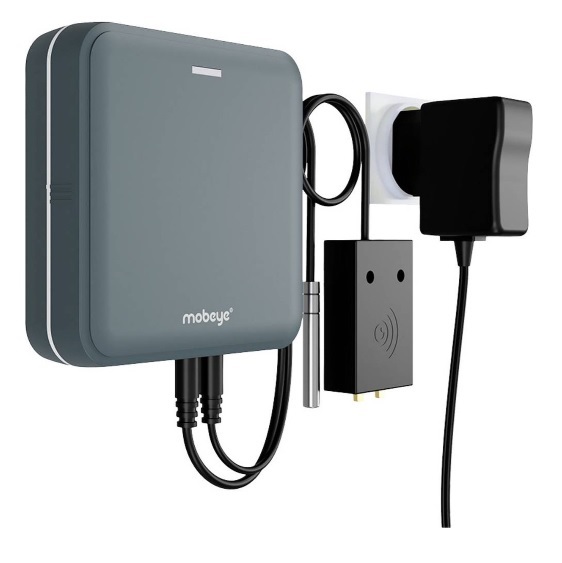

Included CM4600: 1x temperature sensor (1m), 1x water leakage sensor (1m), 1x mains adapter, 2x CR123 batteries

- Inputs - 2x AN/NO/NC (analog or potential-free), 1x temperature, 1x water, 1x 12-24V DC (+/-2V)

- Output - open collector (at external voltage), max. 200mA. Switches on alarm or after incoming SMS/call

- Power supply - 2x CR123 lithium batteries or 12-24V DC (regulated) + 2x CR123 lithium

- Battery life - > 1 year in normal operation (battery powered), > 3 years in normal operation (externally powered)

- Dimensions - 94 x 94 x 28 mm

Connectivity - 4G LTE-M + 2G EGSM Quad band the Mobeye SIM card and Internet Portal provide full functionality and optimal security. The 4G LTE-M network is highly reliable and provides high penetration at low power consumption. 2G is available as fallback

• 2G EGSM Quad band (900/1800 MHz) when using your own SIM card the device works (only) on 2G. The operation is 'stand-alone', without use of the Mobeye Portal. The alarms go via SMS and telephone call to (max.) 5 contacts.

Programming is done via (simple) SMS commands

Accessories (not included) - extension cable temperature/water sensor (3m or 10m), magnetic contact, float sensor, external antenna
