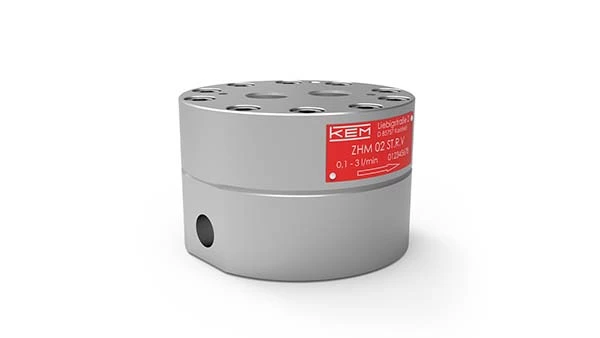

ZHM 02 ST - Gear Flow Meters - abrasive, corrosive - less lubricating fluids

Measuring Ranges 0.1 up to 7.0 l/min

Measuring Accuracy up to ±0.1 %

Repeatability ±0.05 % (under the same conditions)

Linearity ±0.5 % of actual flow (viscosity ≥ 30 mm²/s)

Materials

• Housing: as per DIN 1.4305 [AISI 303], 1.4404 [AISI 316L]
• Gears: shaft per DIN 1.4122, 1.4501 [AISI F55].
• Bearing: Tungsten carbide sleeve bearing
• Seals: FKM, PTFE (others on request)

Pressure up to 420 bar [6,000 psi]

Medium Temperature -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request)
