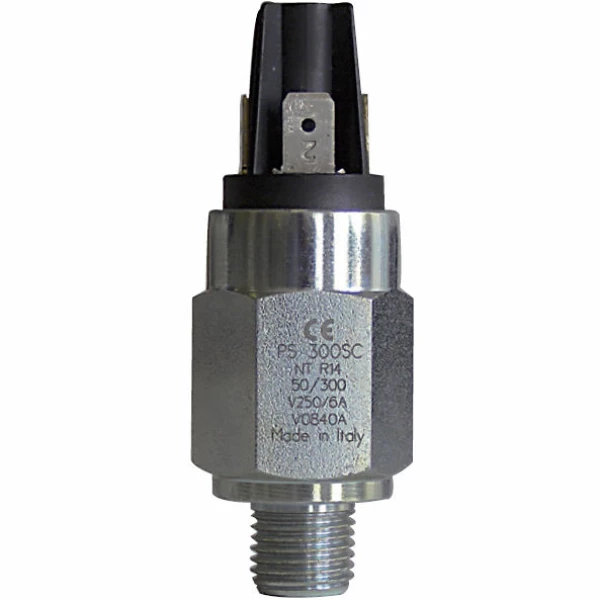

Electromechanically adjustable high voltage pressure switch (max 250 volts), SPDT contacts, electrical connection faston 6.3 x 0.8 IP00. Key hexagonal body 24. IP65 electrical protection with CP65 protective cover is supplied separately. Threaded process connections.
|  Switch load | 6 (2) A / 250Vac 2 (1) A / 24Vdc |
|  Electrical connection | Push-on terminals 6.3×0.8 |
|  Setting range | 0.2 ... 2 bar; 1 ... 10 bar; 10 ... 50 bar; 10 ... 100 bar; 30 ... 150 bar; 50 ... 300 bar |
|  Max. Static pressure | 300 bar, 600 bar (depending on possible pressure range and body material) |
|  Hysteresis | approx. 15% set point adjustment |
|  Operating temperature | -30C... +140C (according to material diaphragm/piston seal) |
| Â Contact (without pressure)Â | SPDT |
|  Body material | Brass - Galvanized steel - 316 stainless steel on request for all models |
|  Diaphragm / piston seal | HNBR - FKM - Red silicone - EPDM - Neoprene - Stainless steel only for MS2 and MS10 models max pressure static 40 bar (-30C to + 40C) |
|  Wires | Narrowing: G1 / 8 BSPT -G1 / 4BSPT -M10x1 Parallel: M12x1.5 - G1 / 4 BSPP - G1 / 8 BSPP |
|  Protection | IP00 (terminals) IP65 (with CAP13) IP54 (with CAP16) |
|  Mechanical life | 10 6 operations |
|  Size | Body 24 AF Max height 57 mm |
|  Certificates and approvals | CE |
|  Options | Setting set point ascending Setting set point descending Gold contacts Degreasing for oxygen applications Gas test High pressure design IP67 protection Special threaded connections |
