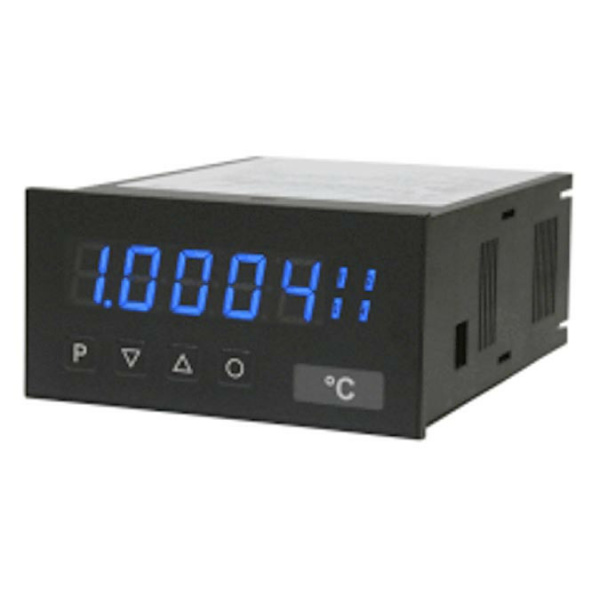

Digital indicator Pt100 3-/4-wire, height characters 14 mm M3 | 96 x 48

Description
Downloads

Display: 5 digits
Color: red (option: green, orange, blue)
Operation: front panel keyboard
Input: RTD Pt100, 3-, 4-wire (-200 ... 850 ? C)
Switching output: 2/4 relays (option), 250 VAC / 5 AAC, 30 VDC / 5 ADC Option: 8 PhotoMos outputs, 30 VAC / DC, 0.4 A
Analog output: 2x 0/4 ... 20 mA, 0 ... 10 V (16-bit switchable)
Interface: RS232 / RS485 (optional)
Power supply: 10 ... 40 VDC, 18 ... 30 VAC, 100 ... 240 VAC
Other: hold, min/max, software tool
