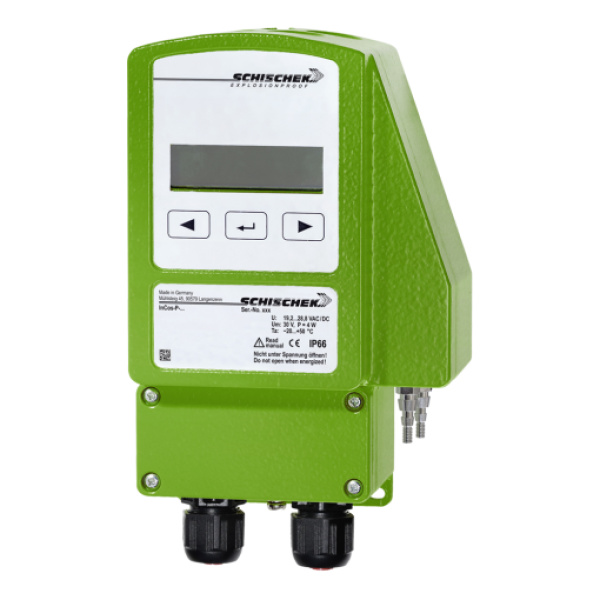

Pressure transducer 20 Pa ... 7,500 Pa INCOS series

Name: Pressure transducer 20 Pa ... 7,500 Pa INCOS series
SKU: InCos-P
Price: 537.70 EUR
Availability: BackOrder

The Rotork-Schischek InCos-P differential pressure transmitter is the ideal solution for measurements in very low pressure ranges (with sensors from 100 Pa (0.001 Bar) to 7,500 Pa (0.075 Bar). This InCos-P model is perfect for measurements in HVAC systems.

Pressure range (Pascal)

Output

Nutrition

Electrical connection

Clear

Analog differential pressure transmitter InCos

For HVAC systems and overall industry
All parameters adjustable on site without additional tools
Display 2×16 digits, indication of measured value, illuminated, switchable
Integrated terminal box
Robust aluminum housing with IP66 protection class
Optionally available in stainless steel or with offshore / marine coating

Accessories:

Mounting bracket MKR for round air ducts (diameter up to 600mm) - € 32,50
2 meters of pressure hose (inner diameter 6 mm) and 2 plastic fittings - € 16.00

Weight	1 kg
Pressure range (Pascal)	100, 1250, 250, 2500, 500, 5000, 7500
Brand	Rotork-Schischek, Schischek
Output	(0) 4 ... 20 mA / 0 ... 10 V
Nutrition	24 VAC / DC
Electrical connection	2 x M16 x 1.5

Product Documents

Documents

Data sheet

Pressure transducer 20 Pa ... 7,500 Pa INCOS series
