Product description

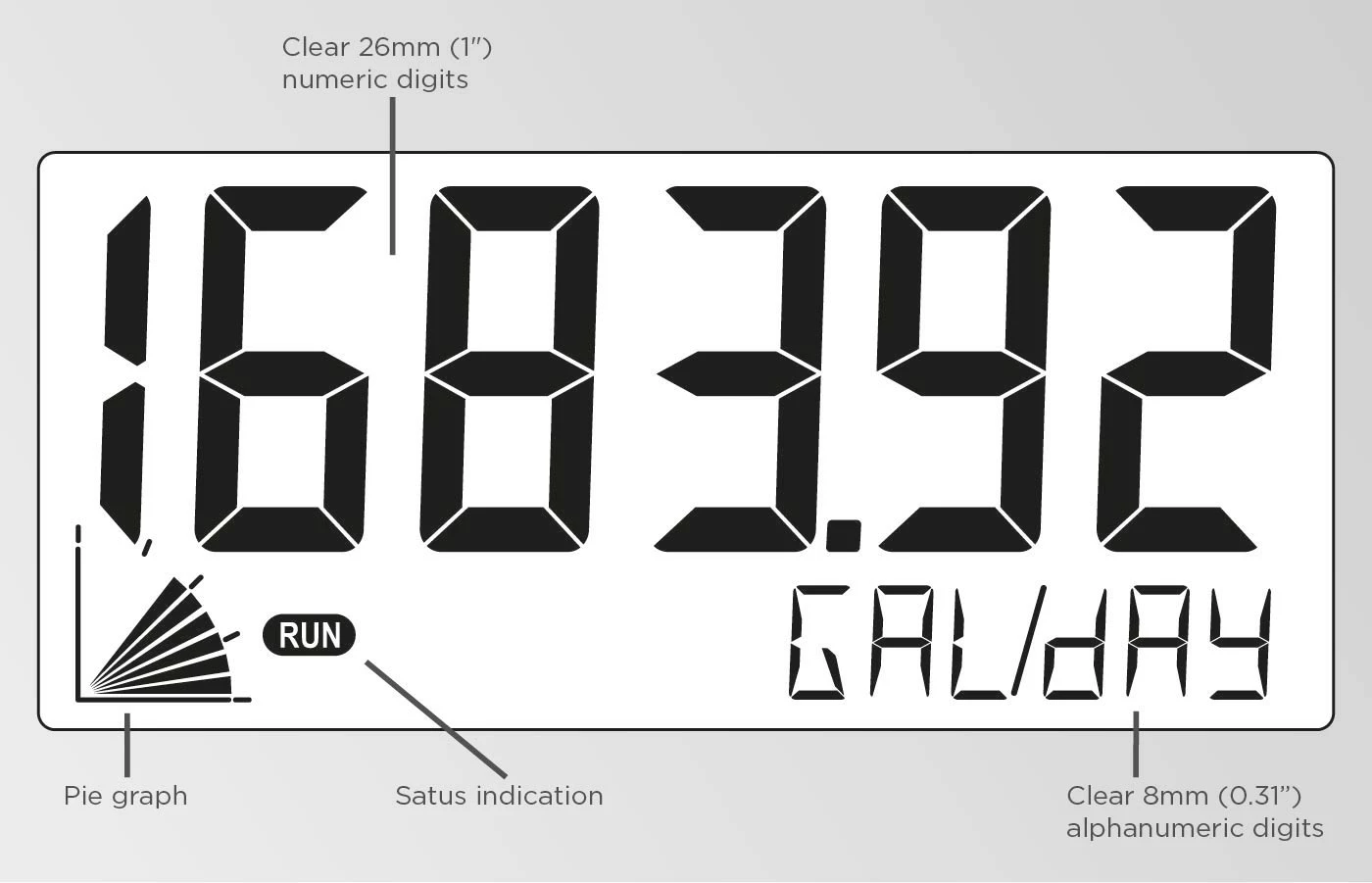

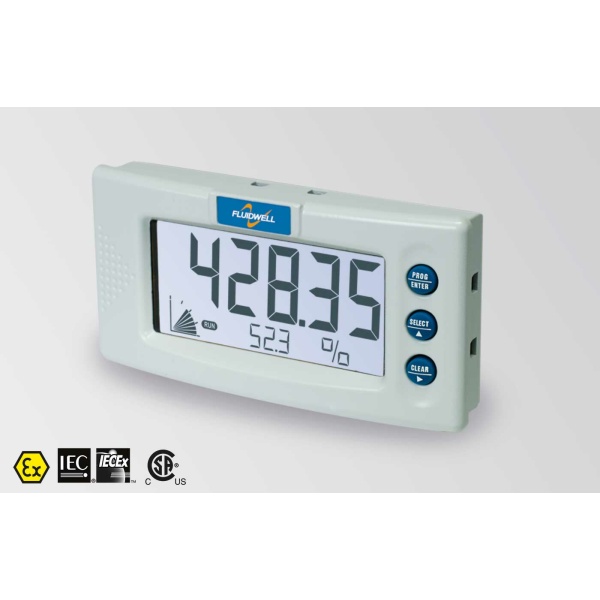

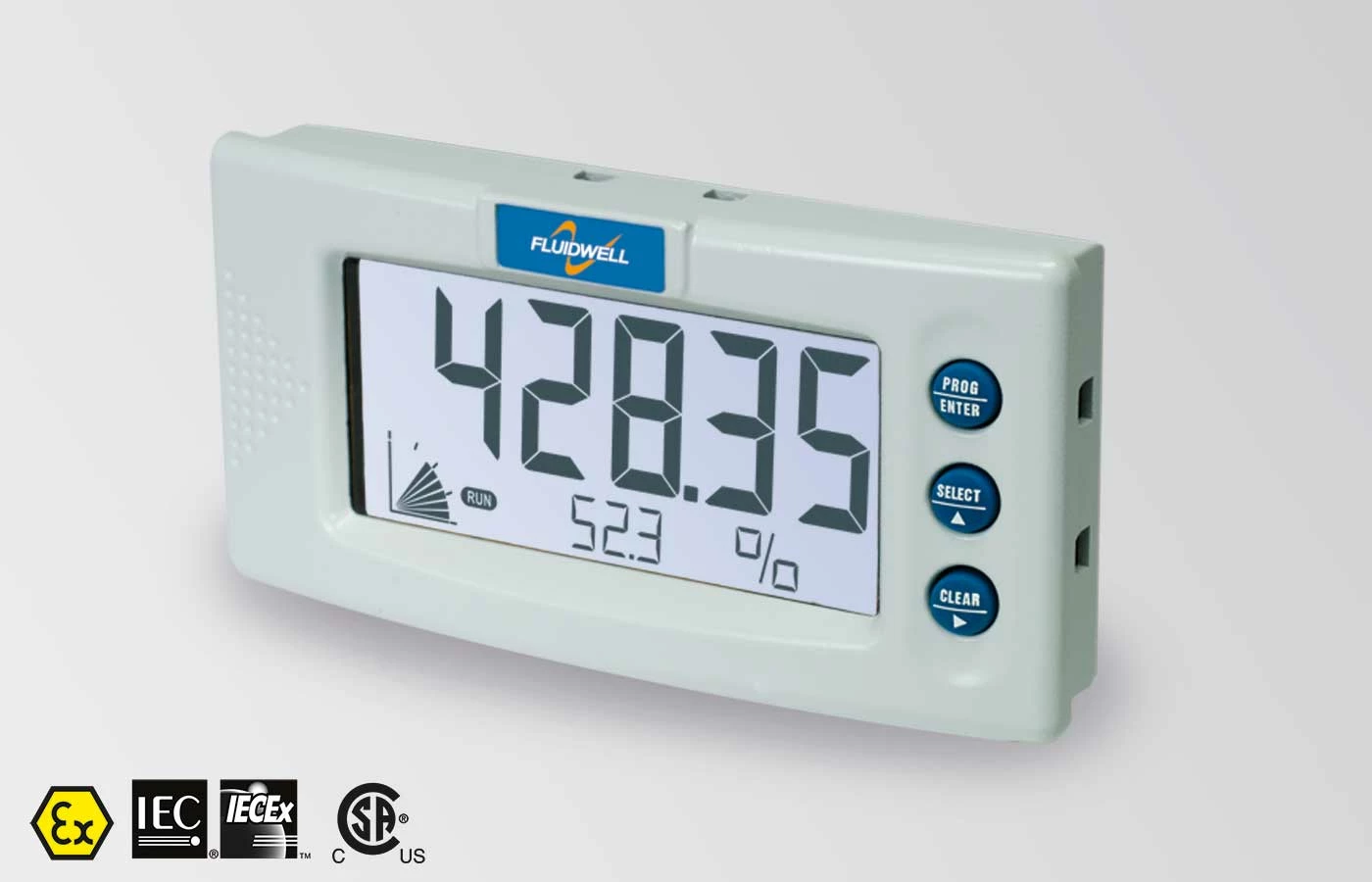

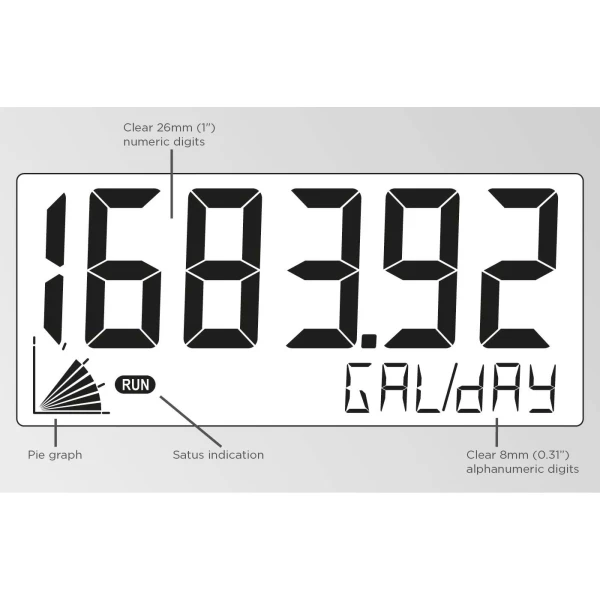

The D490 is a versatile, panel mount, loop powered Multi Purpose Indicator to display the actual process value, range and loop current.? Besides the focus on level, temperature and pressure applications, the D490 can also work with other measuring units, like %, mA, RPM and more. The measuring unit to be displayed is simply selected through an alpha-numerical configuration menu. The configuration of Span, offset and number of decimals is done through software functions, without any sensitive dip-switches or trimmers. Therefore, the D490 is a versatile indicator that suits many applications. Various options are available, including Intrinsic Safety for hazardous area applications.

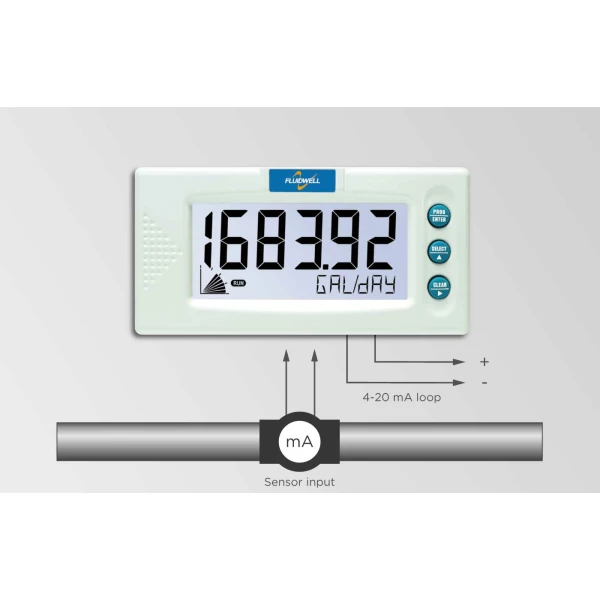

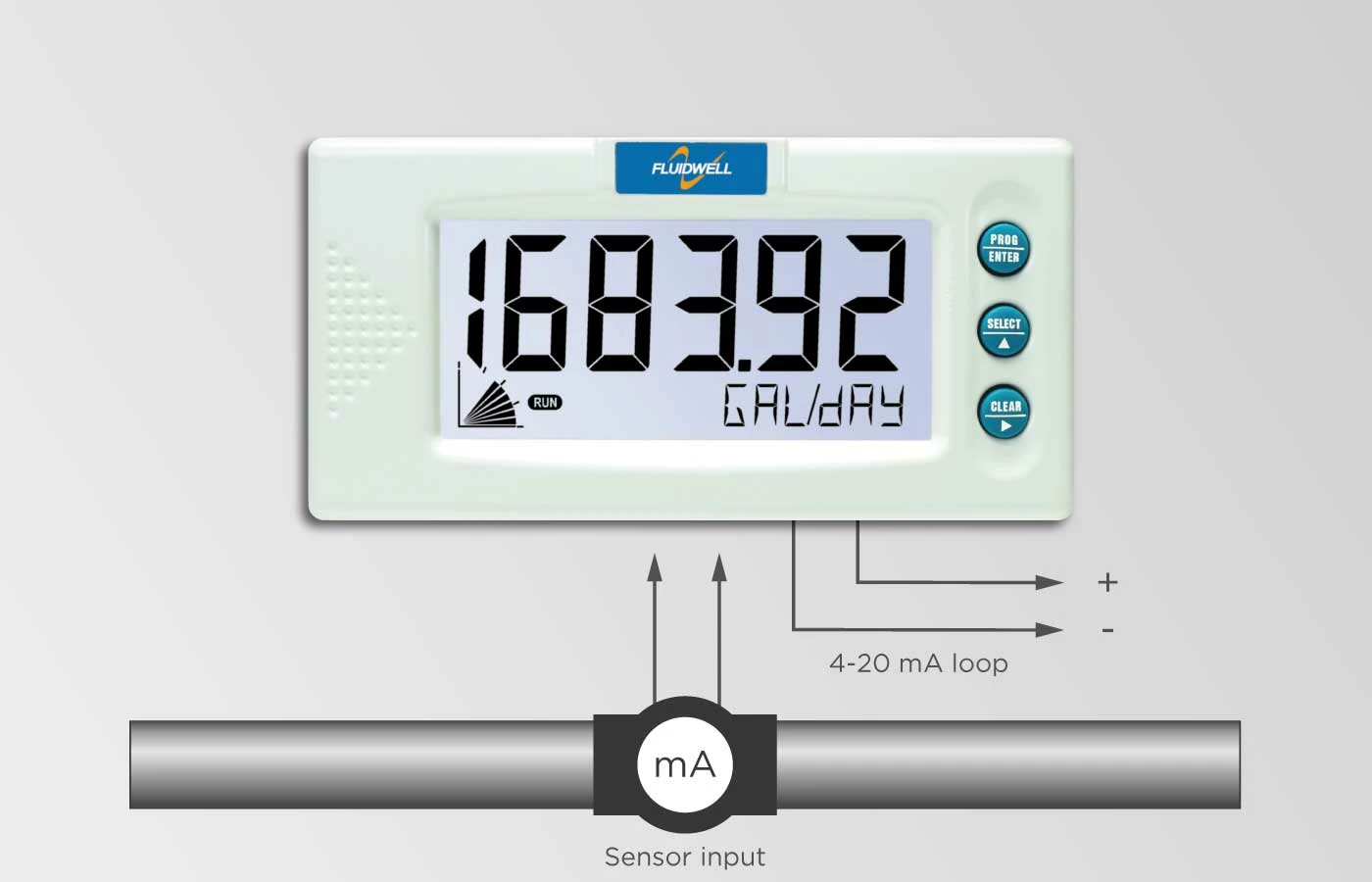

The input circuit is separated from the backlight circuit. The D490 accepts 4 - 20mA input signals from a wide range of process instruments, including flow (linear or square root), level, pressure and temperature transmitters. All these process parameters can be displayed in their own engineering units.
Advantages
- Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion.
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
