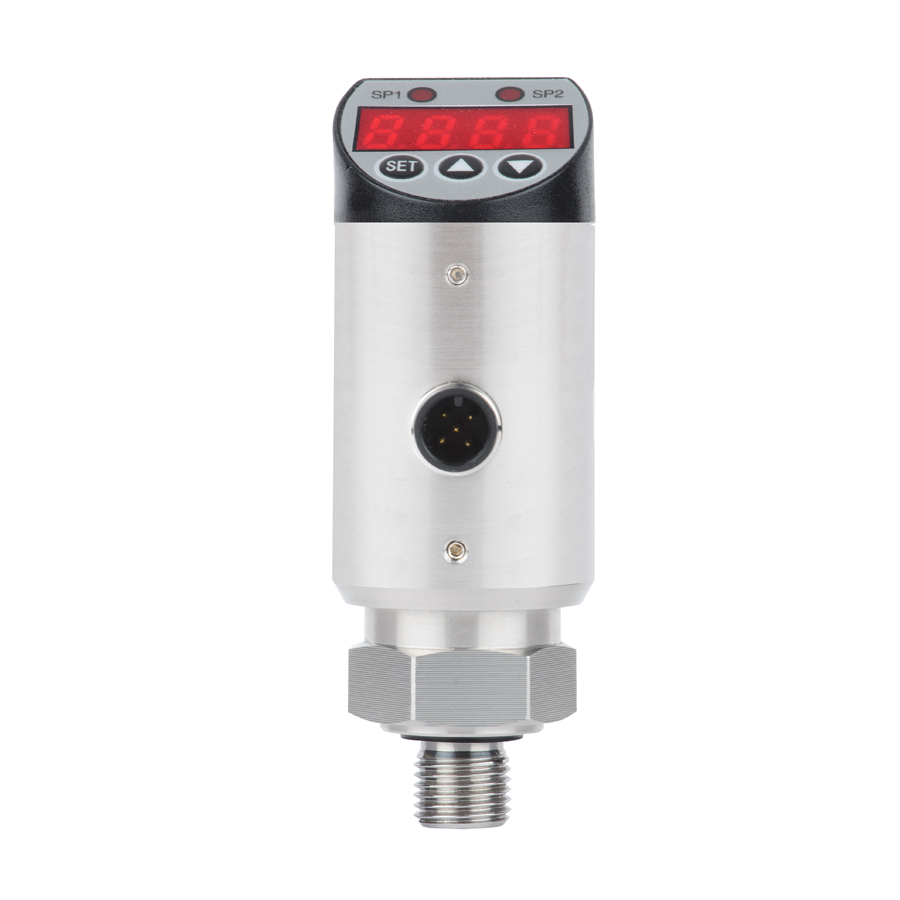

EPX02 – Electronic pressure switch

EPX02 – Electronic pressure switch

Description
Downloads

Supply voltage	10÷30 Vcc
Degree of protection	IP 65
Pressure range	-1…0 bar, 0÷0.1 bar, 0…1000 bar
Accuracy	≤ 0.5% F.S. (standard)
Stability	0.5% F.S./year
Display	LED, 4 digits
Response time	≤ 4 ms
Operating temperature	-20°C…+80°C (depending on the seal)
Output signal current	0÷10 V, 4÷20 mA, 0÷5 V, 0÷4.5 V or others
Wetted parts material	AISI 316L
Sensor material	Silicone
Thread connection	G 1/4” or others on request
Dimensions	Body Ch.27 Height max. 97 mm
Certification	CE
