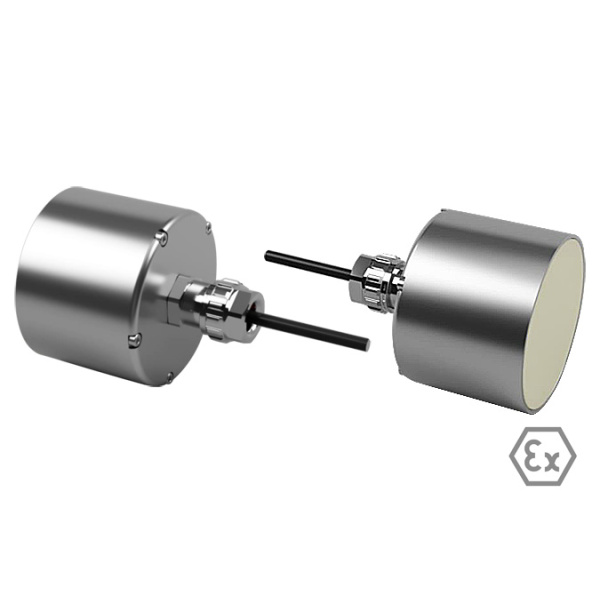

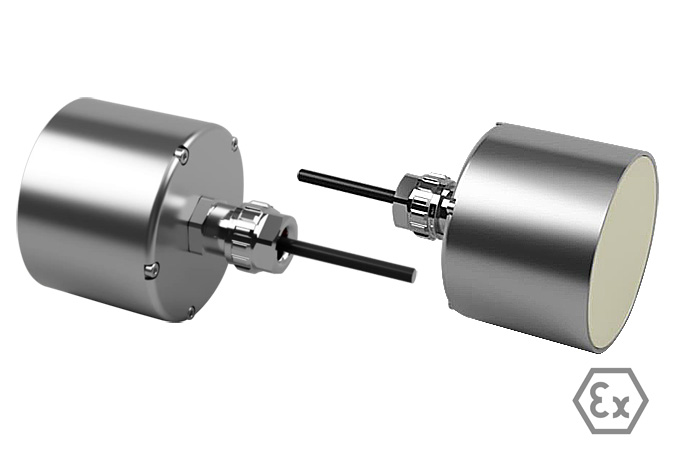

Explosion-proof Sensor for determining moisture content in bulk goods and liquids | Litronic-FMS flat sensor P78-E21

Technical Characteristics

Physical principle: capacitance determination in the high-frequency scattering field
Frequency: 16-22 MHz
Measurement Location: Outside silos via retaining plate, on belt with sliding shoe truck, pipes, screw conveyors, tank, etc.
Measuring range: 0 - 100% moisture content (measuring window adjustable)
Capacity resolution: 10 fF
Power supply: 8...30V, 0.4 VA
Measuring range temperature: -10...90 ° C
Protection rating: IP68

Characteristics:
