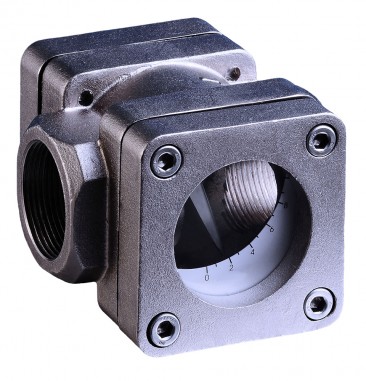

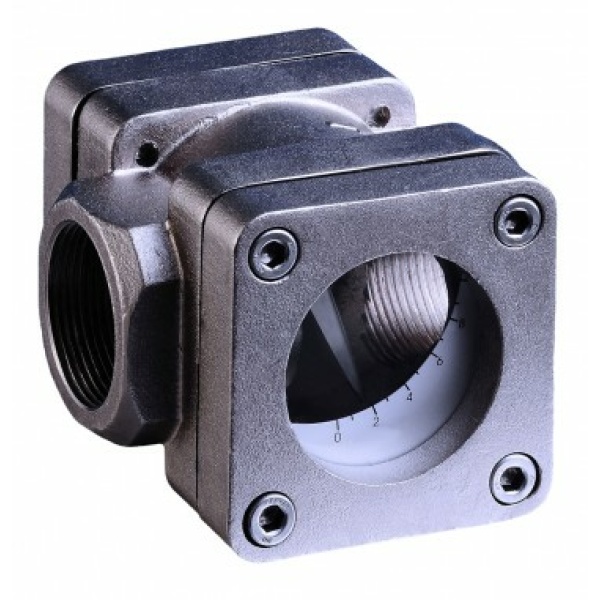

Ideal for use where only a visual indication of flow rate and visual inspection of pipe contents are required to assess product quality and plant safety. It can be used for clear and slightly opaque liquids and gases. Installation is possible in horizontal or vertical flow positions. (Upward only for vertical) The scale allows the user to quickly and easily see the current flow rate and changes in that flow rate.
- Materials; Housing and lids - 316 stainless steel: ASTM-A-351-2000 GR CF8M
- Glass -Toughened Borosilicate (DIN 7080) (16 bar) or -Toughened Soda Lime (BIS 3463) (40 bar)
- Gaskets - PTFE Valve - 316 stainless steel
- Bowl - Polycarbonate
- Fasteners - stainless steel A2
- Pressure rating 40 Bar; (depending on glass and flange specification)
- Sizes BSP, NPT or DIN
- Flange connection: PN10 (other configurations also available)
- Medium series: 1 1/4" (32mm) 1 1/2"(40mm) 2" (50mm)
