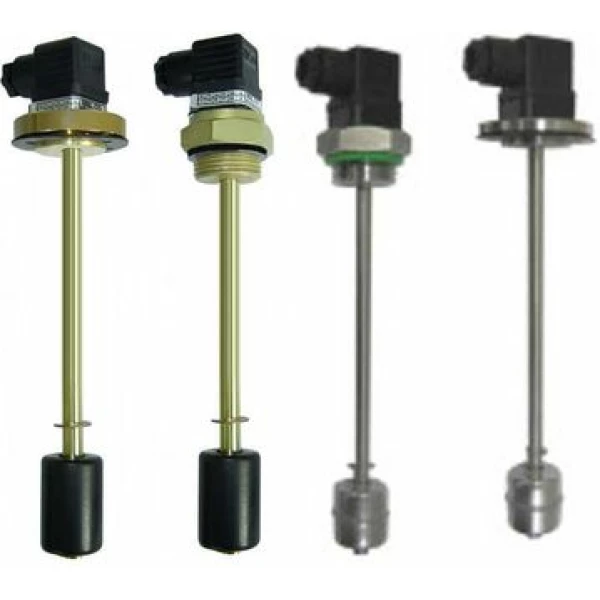

Level switch type SINGOL S1 / S1S with one contact

Technical Specifications:

  • Standard float switch, one contact type
  • S1 - Brass steel and connetction, Spansil float
  • S1S - stainless steel stem, connection and float
  • 1 ″ thread or flange connection process connection
  • 100 to 500 mm. length (step 50 mm.)
  • Max. Working pressure up to 20 bar
  • Max temperature 105°C
  • Reed switch SPST or SPDT
  • Integrated temperature switch (upon request)
  • Electrical connection DIN-43650A
  • Protection class IP65

These items are on request!

The operating principle of these instruments is based on the magnetic actuation of a reed contact, placed in the measuring rod, by a float. The only moving element is the float, which moves along the measuring rod by hydrostatic thrust; this guarantees extreme robustness and limited need for maintenance. Threaded or flange connections. Versions Brass or AISI.
