Fluidwell F Series - F131 Intrinsically Safe - Batch Controller (Limited availability)

Fluidwell F Series - F131 Intrinsically Safe - Batch Controller (Limited availability) - Image 2

Fluidwell F Series - F131 Intrinsically Safe - Batch Controller (Limited availability) - Image 3

Fluidwell F Series - F131 Intrinsically Safe - Batch Controller (Limited availability)

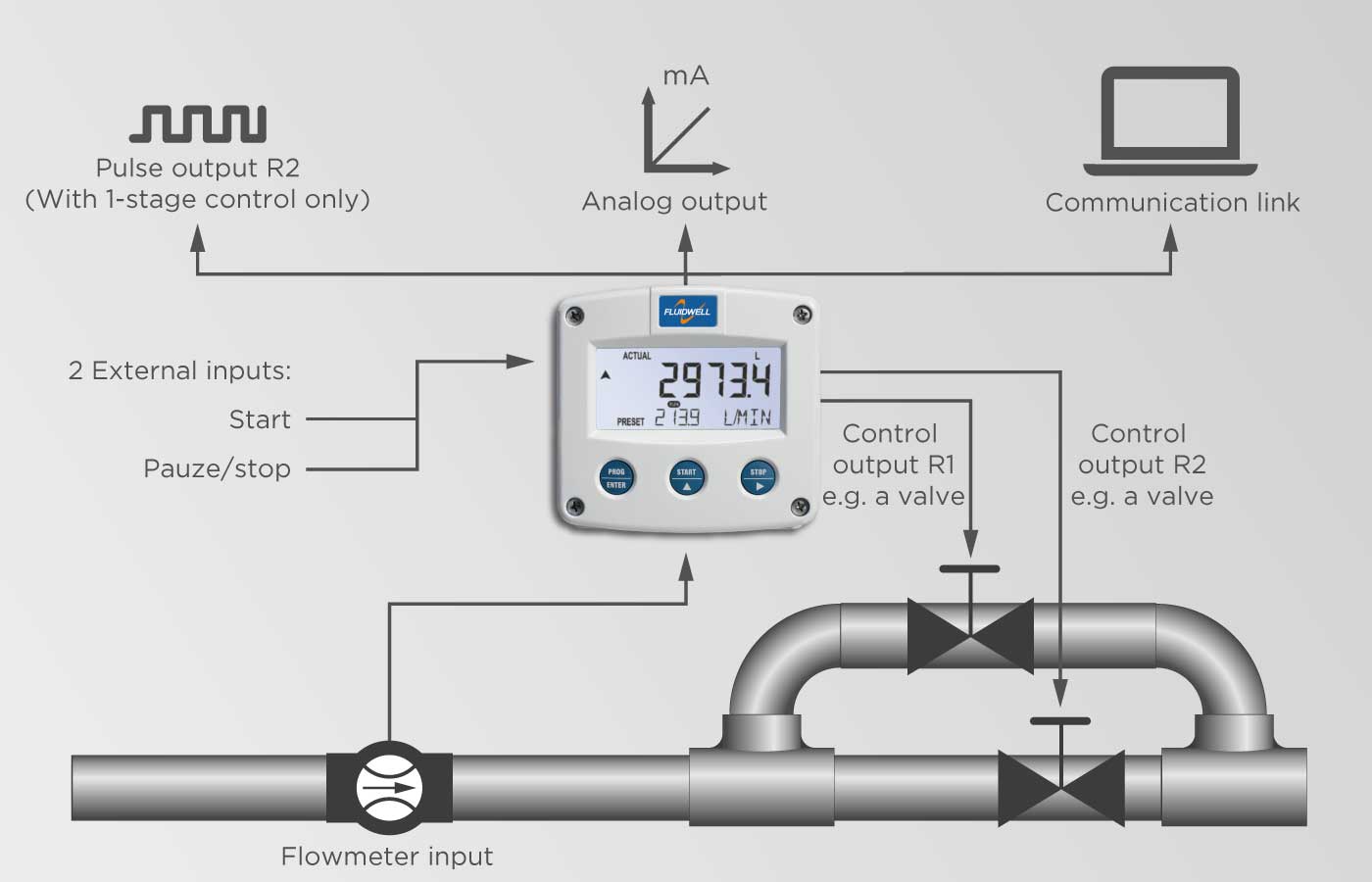

With two-stage control, pulse output and analog output in relation to the flow rate.

Large display shows running batch value together with preset value or flow rate.
Analog output reflecting the actual flow rate.
Flow rate: seven 8mm (0.31″) digits.
Two-stage control for batching larger quantities.
Self-learning overrun correction.
Easy operation to enter a batch value and to control the process.
Count-up and count-down function available.
Scaled pulse output reflecting accumulated or batched total.
Actual batched quantity: seven 17mm (0.67″) digits.
Preset value: seven 17mm (0.67″) digits during programming and 8mm (0.31″) digits during batch process.
Total - resettable: seven 17mm (0.67″) digits.
Accumulated total - not resettable: eleven 8mm (0.31″) digits.
LED backlight.
Intrinsically safe according to ATEX and IECEx.
GRP, Aluminum or high grade stainless steel enclosure.
Auto backup of settings and running totals in EEPROM memory.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).

Description
Downloads

The F131 offers, in addition to the standard batch control functions, an analog output signal in relation to the displayed flow rate. The operator can enter a batch quantity easily or execute repeating batches.
During the batch, the preset value and flow rate are displayed simultaneously with the batched or remaining quantity. The automatic self-learning overrun correction will ensure an accurate batch every time. On-screen engineering units are easily configured from a comprehensive selection.

Advantages

Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it!
Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications.
Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
