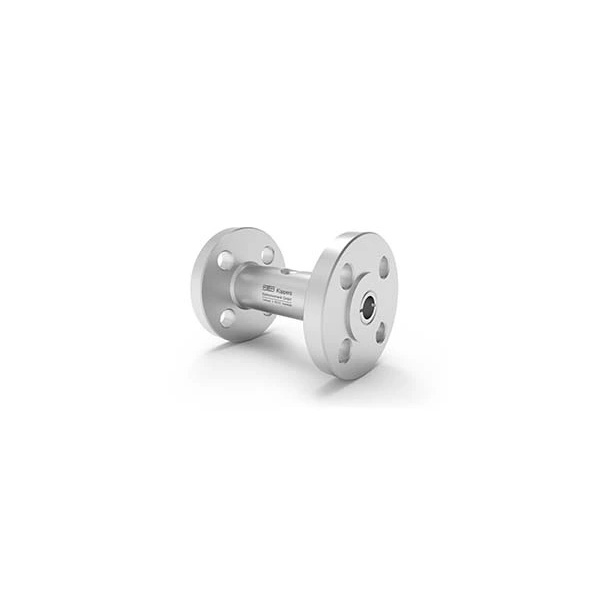

The HM F turbine flowmeter series (F for flange connections) is used to measure continuous and discontinuous flow rates. They are mainly used for lubricants and non-lubricants. They are particularly suitable for low and medium viscosity fluids such as water, emulsions, glycol mixtures and light oils. The HM F turbine flowmeter series (F for flange connections) are used to measure continuous and discontinuous flow rates. They are mainly used for lubricants and non-lubricants. They are particularly suitable for low and medium viscosity fluids such as water, emulsions, glycol mixtures and light oils.
Measuring Ranges 45 up to 3,200 l/min
Repeatability ±0.05 % (in standard measuring range & under the same conditions)
Viscosity Range 1 up to 10 mm²/s
Materials
- Housing and internal parts: DIN 1.4404 [AISI 316L]
- Wheels: DIN 1.4462 [AISI S31803]
- Bearing: Tungsten carbide sleeve bearing
Pressure 16 up to 250 bar [232 up to 3,626 psi].
Medium Temperature -60 °C up to +350 °C [-76 °F up to +662 °F].
