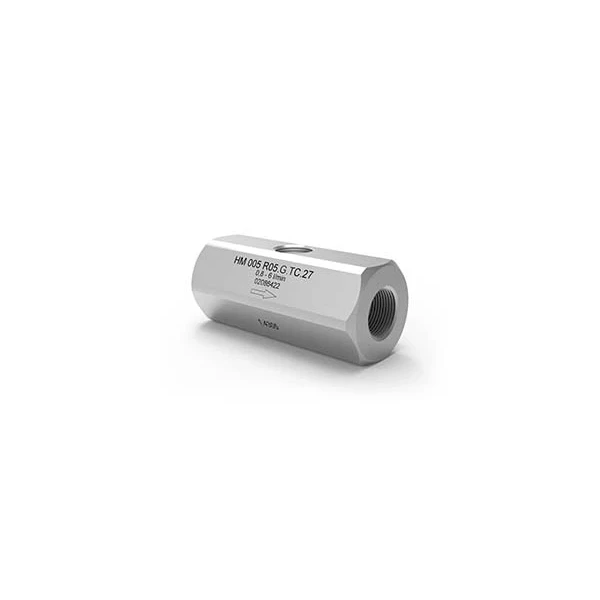

HM R - Turbine Flow Meters with BSPP Threads for lubricating and non-lubricating media -.

HM R - Turbine Flow Meters with BSPP Threads for lubricating and non-lubricating media - - Image 2

HM R - Turbine Flow Meters with BSPP Threads for lubricating and non-lubricating media - - Image 3

HM R - Turbine Flow Meters with BSPP Threads for lubricating and non-lubricating media -.

The HM R turbine flowmeter series (R for Female Inch Threads) is used for measuring continuous and discontinuous flow rates. They are mainly used for lubricants and non-lubricants. They are particularly suitable for low and medium viscosity fluids such as water, emulsions, glycol mixtures and light oils. Even the measurement of cryogenic liquids is possible.

Description
Downloads

The HM R turbine flowmeter series (R for Female Inch Threads) is used for measuring continuous and discontinuous flow rates. They are mainly used for lubricants and non-lubricants. They are particularly suitable for low and medium viscosity fluids such as water, emulsions, glycol mixtures and light oils. Even the measurement of cryogenic liquids is possible.

Measuring Ranges 0.3 up to 400 l/min

Repeatability ±0.05 % (under the same conditions)

Linearity ±1 % of actual flow

Viscosity Range 0.8 up to 30 mm²/s

Materials

Housing: as per DIN 1.4404 [AISI 316L] (others on request)
Wheels: as per DIN 1.4460 [AISI 329] (others on request)
Bearing: Tungsten carbide sleeve bearing

Pressure up to 630 bar [9,140 psi].

Medium Temperature -60 °C up to +350 °C [-70 °F up to +662 °F].
