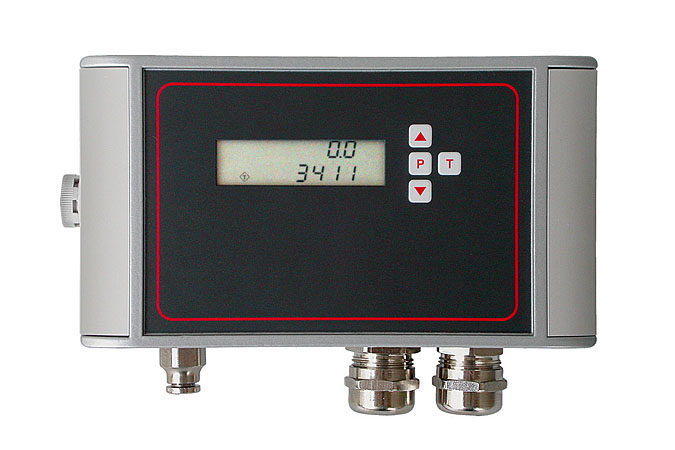

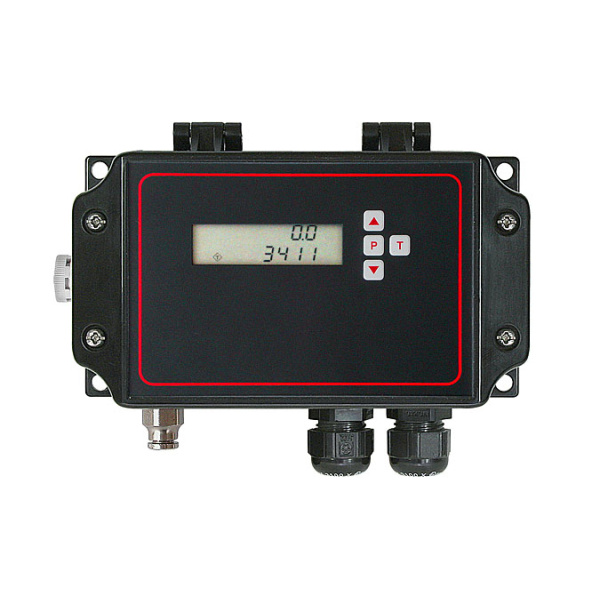

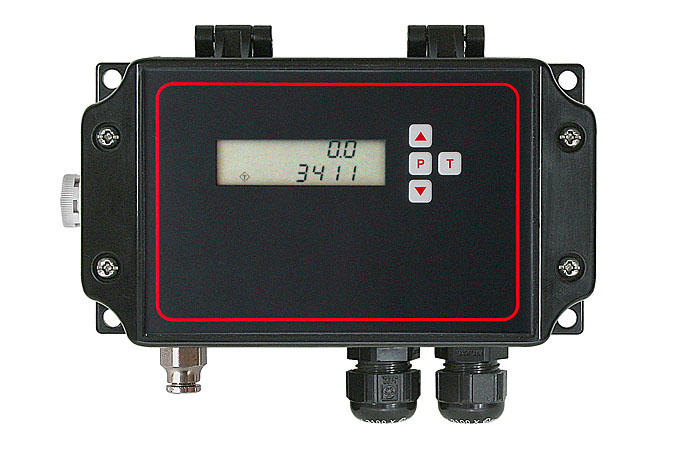

Müller Bailer tube level measurement ADLM-P

technical characteristics

Measurement: positive relative pressure (hydrostatic pressure)
Range: 0 ... 1000 mbar, 0 ... 50 mbar, 0 ... 100 mbar, 0 ... 200 mbar, 0 ... 350 mbar
Output: 0..10V and 4 ... 20mA
Accuracy: up to 1% of final scale value
Supply voltage: 24 VDC, +/- 20%
Level measurement in all liquids possible
Aggressive and abrasive media are not a problem
Distance from bubbling point to 50 m

Weight	1 kg
Brand	Müller IE
Pressure range (mBar)	0 … 100, 0 … 1000, 0 … 200, 0 … 350, 0 … 50
Output	4 ... 20 mA, 0 ... 10 V
Housing	Aluminum, Plastic
Measuring range	Please specify max fill height and medium
