Portamonitor® bearing indicator / discontinued!!!

This is your ideal, quick-to-use pocket-sized tool for checking lubrication and bearing wear on rotating machinery, especially on pumps, motors and gearboxes. Portable tool for checking acoustic emissions. P / N: 2634016-PMO

Description
Downloads

Dimensions	Height: 62 mm (2.44 inches Width: 98 mm (3.86 inches) Depth: 34 mm (1.34 inches) Weight: 225 grams (7.94 ounces)
Sensor	Resonant piezoelectric at 100 kHz
Sensor measurement	Distress®: Error message parameter 0 to 40 1st resolution dB level®: Logarithmically scaled average signal level 0 to 80 1 dB resolution
Power supply	NiMH rechargeable battery via micro-USB port - Typically more than 1000 readings between charges (battery life about 12 hours)
Screen	LCD, 2 lines of 8 characters Busy reading: flashing LED indicator (next to message on LCD display)
Operating temperature	1 x PP3 9V battery (battery life 10 hours)
Warranty	Main unit: 1 year warranty Lifetime customer support
Package Contents	1 Portamonitor unit 1 USB cable 1 protective cover 1 carrying bag User Manual

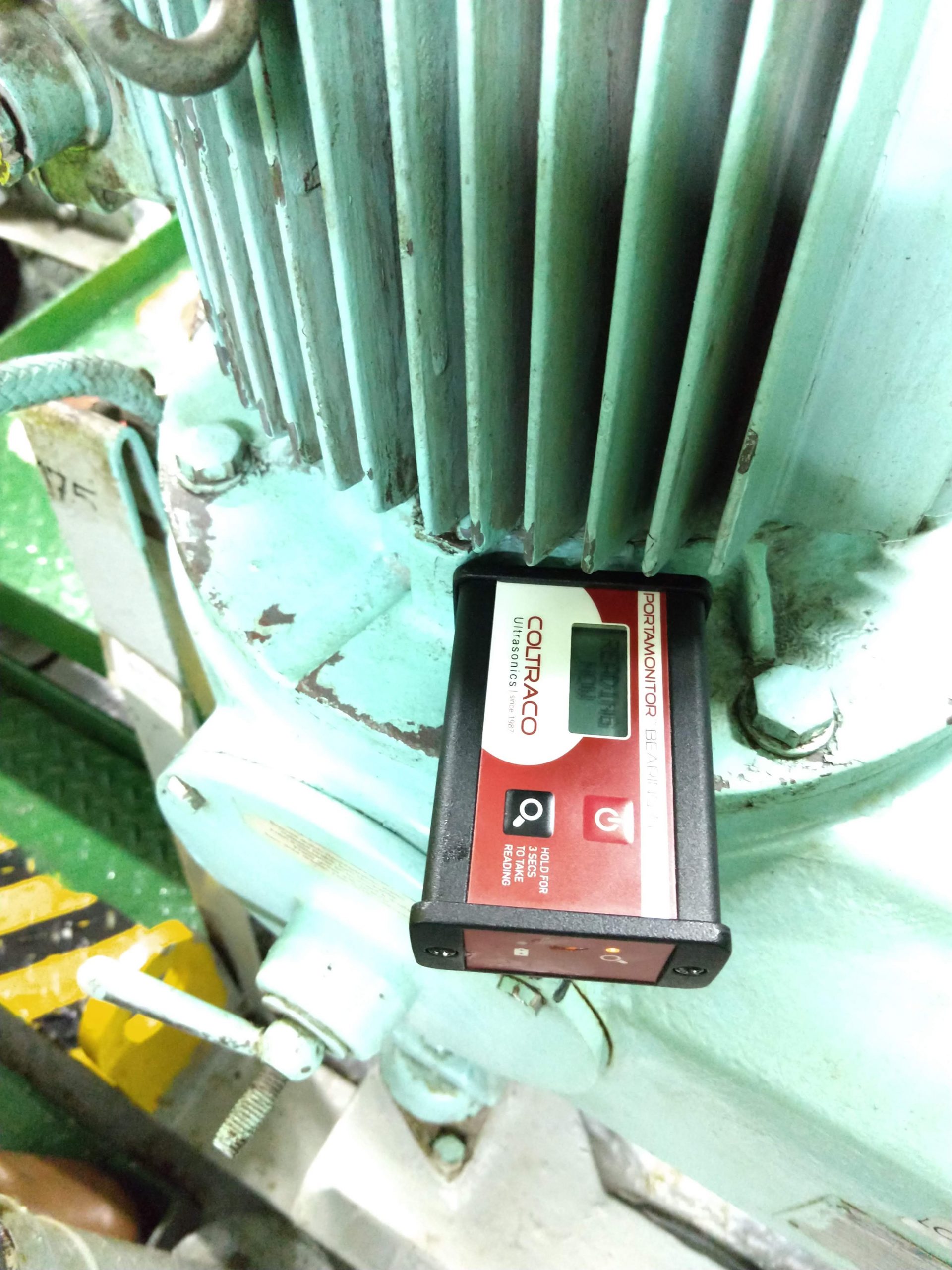

Recent news related information	Complementing our Portascanner ™ Watertight package, the miniature Portamonitor ™ is designed to test bearings and rotating machinery aboard ships and naval vessels. Trials will soon be conducted with a leading Navy. The Portamonitor ™ helps identify mechanically damaged bearings and bearings with insufficient / contaminated lubricant. It does this by detecting high-frequency (ultrasonic) voltage waves associated with friction and other defects on machinery in poor condition (shocks, etc.). It can be used to monitor bearings in motors, pumps, fans, gearboxes and other rotating machine applications. It has two outputs - a decibel (dB) reading and a Distress® level that are both measured and displayed simultaneously by the Portamonitor™. In addition to our standard after-sales customer service, you can upgrade to our Portacare® plan. This is our 3-5 year total maintenance and calibration package in accordance with proper calibration of measuring and monitoring equipment as advised by BS (British Standard) BS EN ISO 17025, NIST, Indian Standards etc. UKAS (United Kingdom Accreditation Service) is the only body recognized by HM Government for assessing and accrediting the competence of calibration and testing laboratories. Their maximum calibration interval for sound intensity meters, such as the Portalevel®, is one year. UNIDO (United Nations Industry Development Organization) and NIST (National Institute of Standards and Technology) also support regular calibration. UNIDO states that '... calibration is an essential activity in any measurement process.
