Ultrasonic level detection for containers-Tanks storage Portatank®(3141184-TANK)

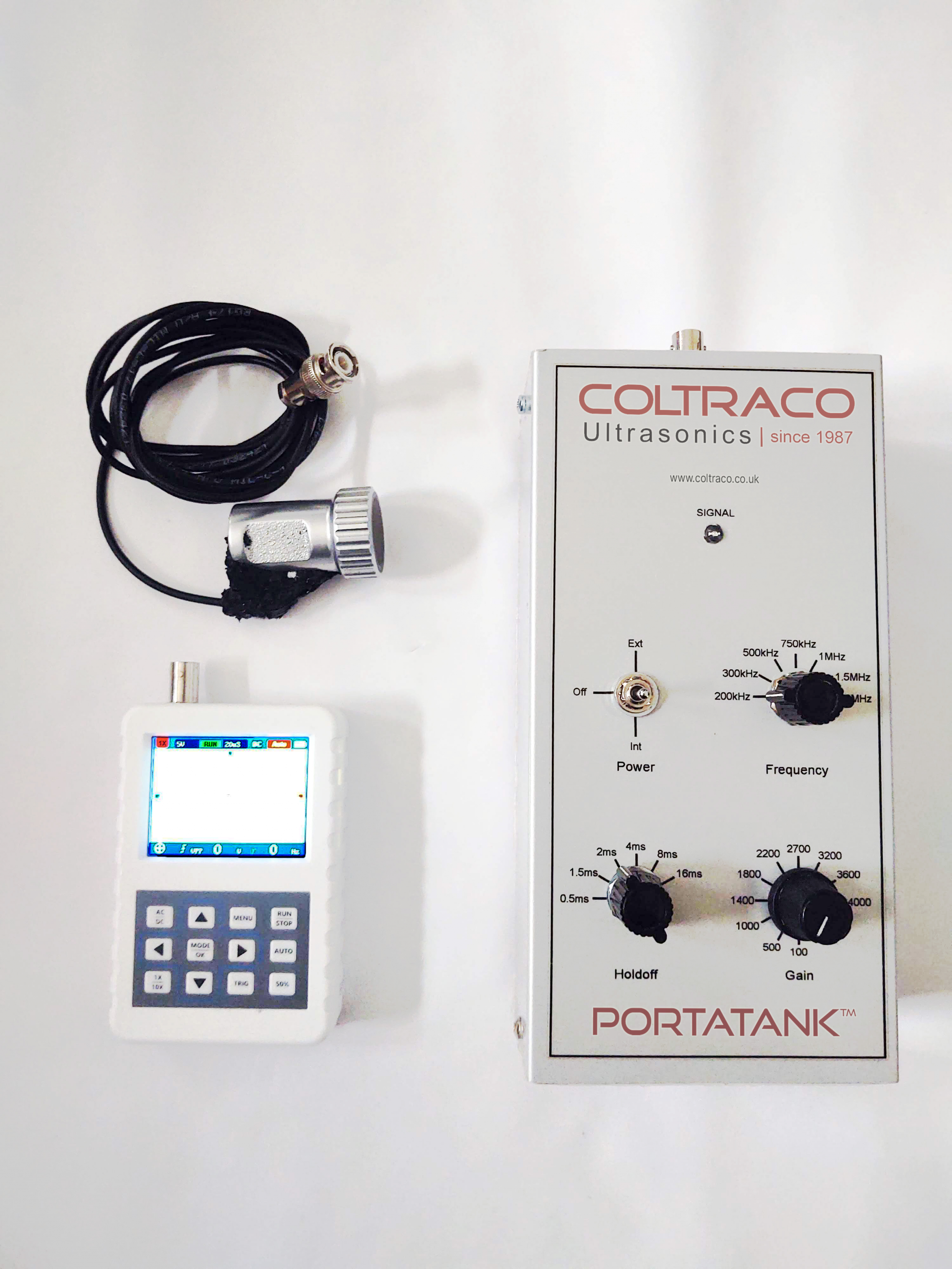

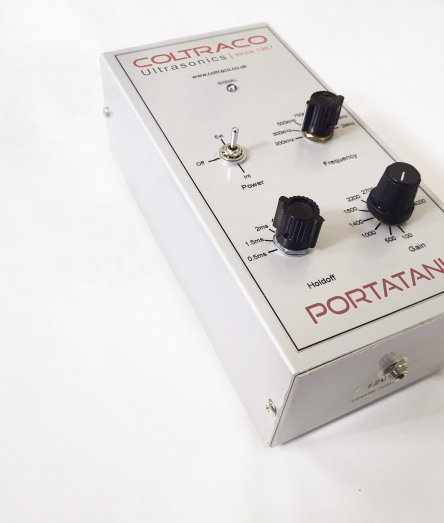

Main unit - handheld
Sensor with cable
Handheld oscilloscope (+ BNC cable and micro-USB cable)
Rugged carrying case
Calibration Certificate
User Manual
Ultrasound Gel

Description
Downloads

Identify liquid levels in large industrial containers/tanks/storage units using portable handheld ultrasonic liquid level indicator.
Coltraco Ultrasonics' latest product launch in 2020!

Dimensions	Height: 200 mm Width: 100 mm Depth: 700 mm Weight: 750 grams (with batteries)
Accuracy	+/- 10mm
Verifiable Agents	Water and most clean liquids (get in touch for more details)
Sensor	200 kHz, 500 kHz, 1 MHz, 2 MHz (depending on application), connected by BNC connector
Power Supply	8 x 1.5 V AA batteries
Display	Liquid Level Detection: Visual LED indication
Operating Temperature	Ambient temperature range: -20°C to +70°C
Certificates	CE ISO 9001 Registered ISO 14001 Registered Company
Warranty	Main Unit:3 Years Warranty Sensor:1 Year Warranty Lifetime Customer Support
Package Contents	1 Main Unit 1 Sensor 1 Robust Carrying Case 1 Calibration Certificate 1 Operating Instructions
