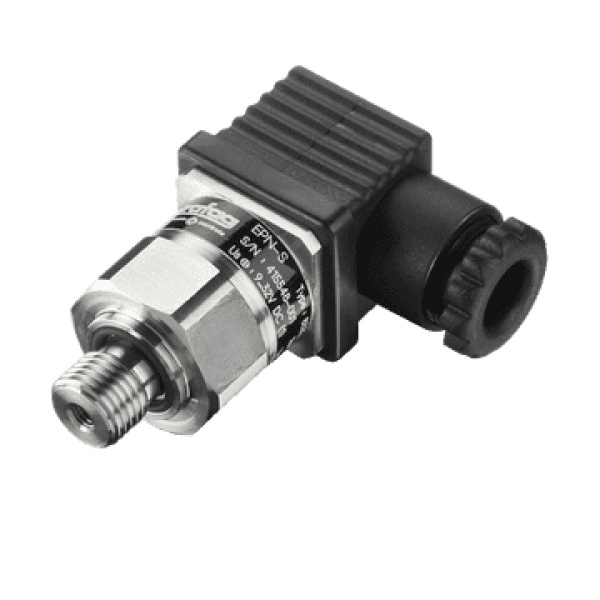

Trafag Pressure Switch EPN-S - 8320 with vessel approval

Trafag Drukschakelaar EPN-S - 8320 met scheepsgoedkeuring - Image 2

Trafag Drukschakelaar EPN-S - 8320 met scheepsgoedkeuring - Image 3

Trafag Pressure Switch EPN-S - 8320 with vessel approval

Characteristics:

Robust design
Wide temperature range
Excellent long-term stability
Very compact design
Switching point set at the factory or programmable with the Sensor Communicator SC

Pressure range (Bar)

Process Connection

Electrical connection

Output

Clear

The EPN-S electronic pressure switch is based on the proven EPN pressure transmitters. It stands for reliable accuracy over a wide temperature range and excellent long-term stability even in the most demanding environments in the shipbuilding and railroad industries. The switching point is factory set or can be programmed on site with Trafag's Sensor Communicator SC.

Weight	1 kg
Pressure range (Bar)	0-10, 0-100, 0-16, 0-2,5, 0-25, 0-250, 0-4, 0-40, 0-400, 0-6, 0-60, 0-600
Brand	Trafag
Process Connection	G1/4" BSP external
Electrical connection	DIN EN175301-803-A
Output	1 Transistor (open source)
