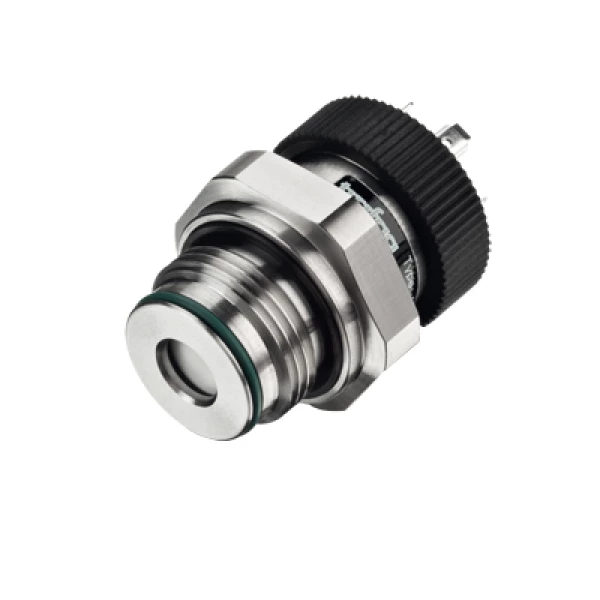

The economical pressure transmitter ECTF 8473 is based on the proven ECT line. This pressure transmitter is ideally suited for high viscous fluids including ice machines, ground water, slip etc. With a media temperature range of -25 to 125°C, improved accuracy combined with a comprehensive range of mechanical connections and materials make the ECTF 8473 pressure transmitter an ideal and versatile solution for a wide range of applications.
Weight | 1 kg |
---|---|
Pressure range (Bar) | 0 … 0.1, 0 … 0.2, 0 … 0.4, 0 … 0.6, 0 … 1, 0 … 1.6, 0 … 10, 0 … 2.5, 0 … 4, 0 … 6 |
Output | 4 ... 20 mA |
Process Connection | G3/4" front diaphragm |
Nutrition | 24 (9 … 32) |
Brand | Trafag |
Electrical connection | DIN EN175301-803-A |
