Trafag Room thermostat IA-IAS

Trafag Ruimte-thermostaat IA-IAS - Image 2

Trafag Room thermostat IA-IAS

Characteristics:

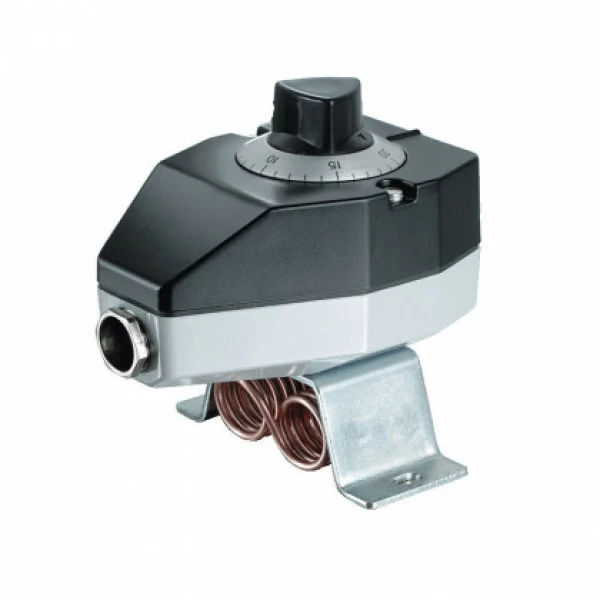

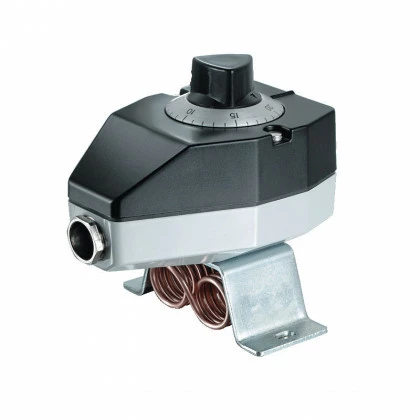

409 / internal setting

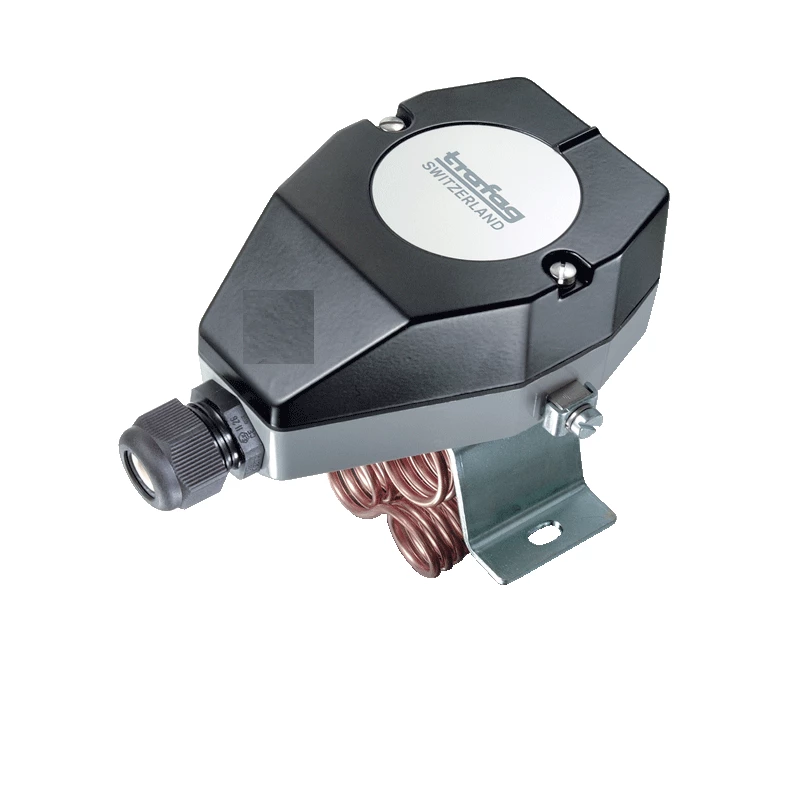

419 / external setting
Compact design
Rugged housing
Protection IP65
Any mounting position possible

Setting

Range (°C)

Switching differential

Operating temperature

Clear

Measuring range [°C] : -30...+30 to +60.0
Setting inside or outside
Sensor : mechanical
Output : microswitch SPDT
Gear differential: adjustable
Housing : Alu epoxy coated IP65
Plug : Pg 13.5
Ambient temperature [°C] : to +70
Accuracy: +/- 2% of full scale

Weight	N/A
Setting	Indoor, Outdoor
Range (°C)	-30 … +30, 0 … +60, +5 … +35
Switching differential	0.7 ... 6 (adjustable)
Operating temperature	-30 … +40, -30 … +50, -30 … +70
Brand	Trafag

Product Documents
