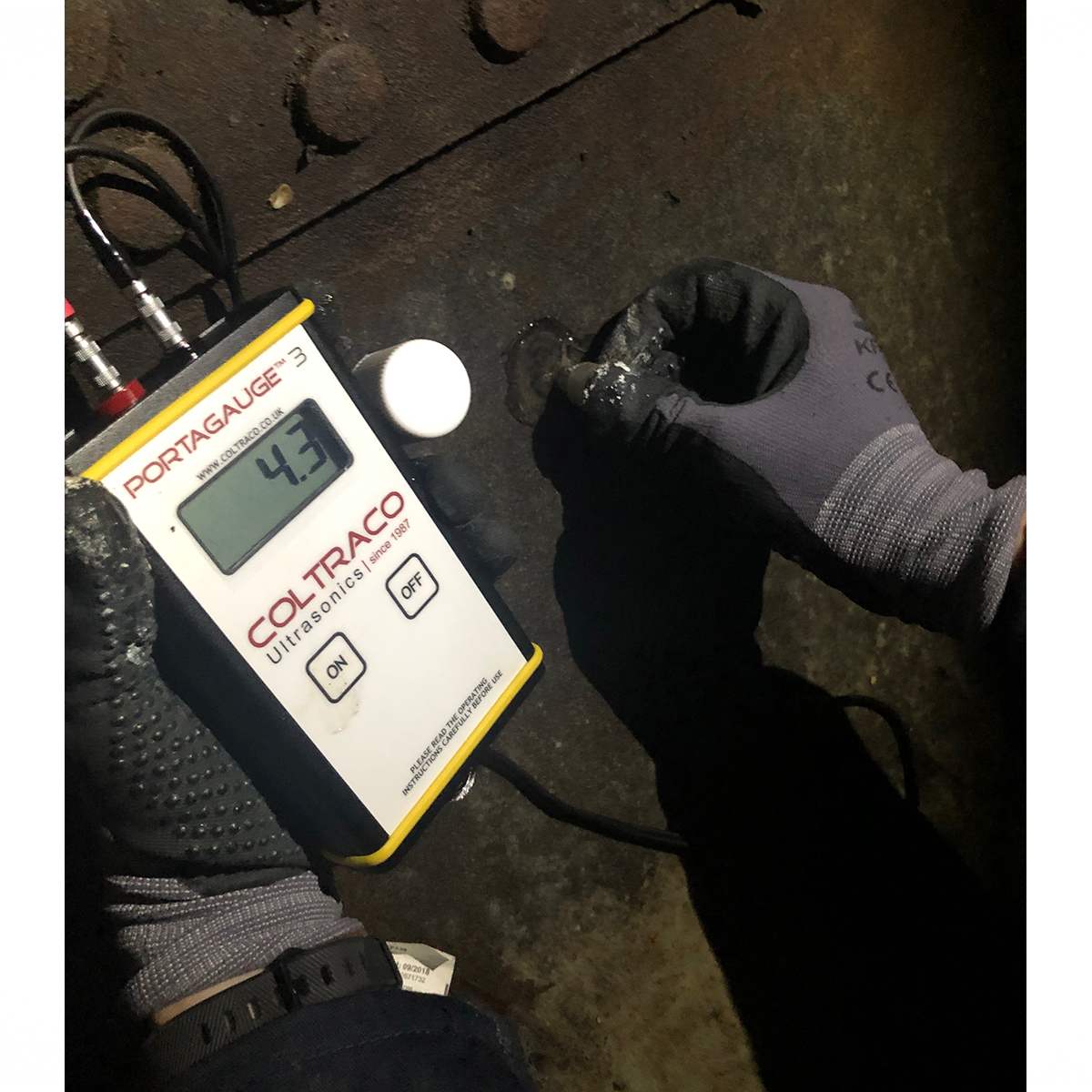

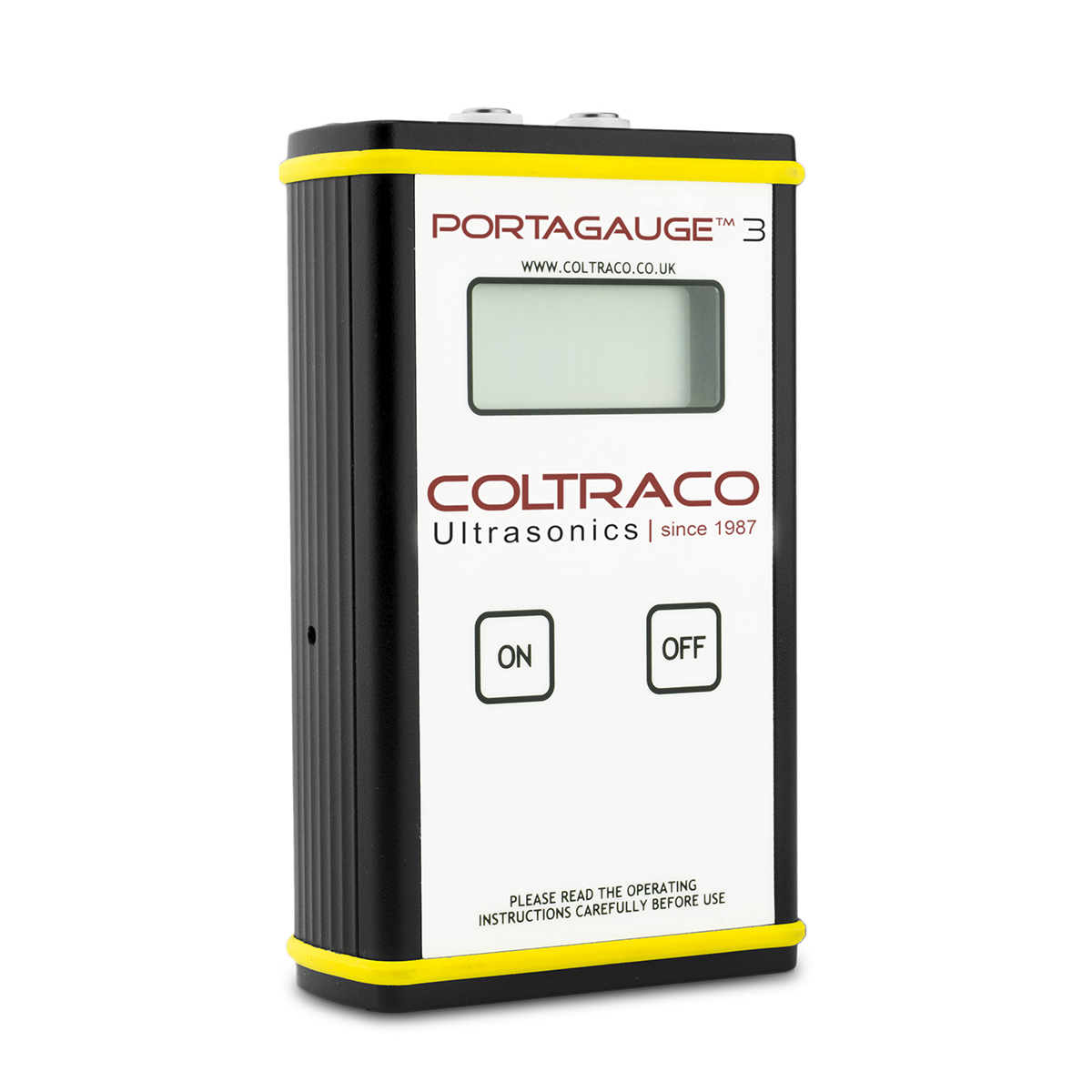

Coltraco's Portagauge® 3 is a low-cost ultrasonic thickness gauge ideal for corrosion inspection. Easy to use, very robust, also known as the Marine Superintendant's thickness gauge.
Type: 2099382-PG3 NSN: 6680-99-192-2735.
Dimensions:
- Height: 140 mm
- Width: 80 mm
- Depth: 30 mm
- Weight: 300 grams
Measuring range thickness:
1.5mm - 99.9mm
Accuracy:
+/- 0.1mm
Nutrition:
PP3 (replaceable) - Average of 25,000 readings, low battery charge indication
Detectable sound speed:
500-9000 m/s
Temperature:
-20°C to +70°C (68°F to 158°F)
Pipe diameter:
Sensor of 10 mm: 1 ½ inches or 38 mm >
Sensor of 6 mm: 1 ½ inches or 38 mm <
Warranty:
Main unit: 3 years warranty, sensor: 1 year warranty
