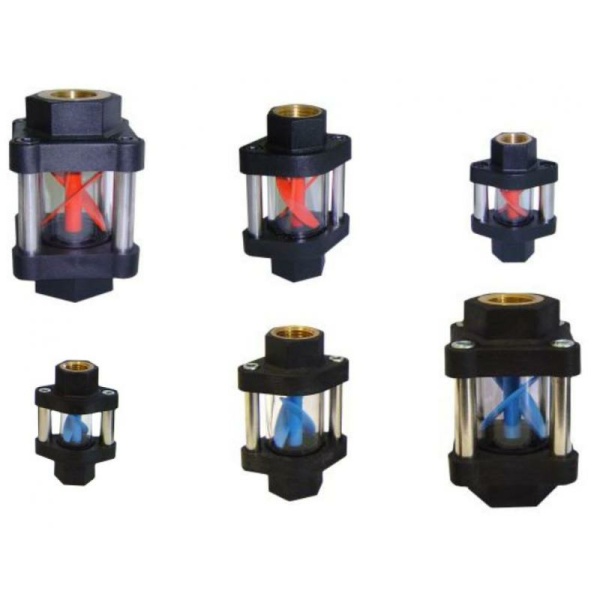

Visual flow indicator Type: CV DN010-G3/8"

Visuele stromingsindicator Type: CV DN010-G3/8" - Image 2

Visual flow indicator Type: CV DN010-G3/8″

Type: CV-010G.PSO.R
Media: water, oil and clean liquids
Flow rate: 10 ÷ 190 lt / min.
Temperature Max 100°C
Maximum pressure: 25 bar (depending on size)
Connections: G 3/8 "
Weight: 1 kg
Free mounting position

The propeller flow indicators are suitable for passing water, oil, gasoline, diesel and other liquids except corrosive liquids. Important for operating the instruments is that the liquid is clean or better clear. These instruments do not have any measurement function, they only serve to check whether there is liquid passage or not.

Brand	Sensors.co.uk

Product Documents

Datasheet
