Opciones
- Without base or bracket

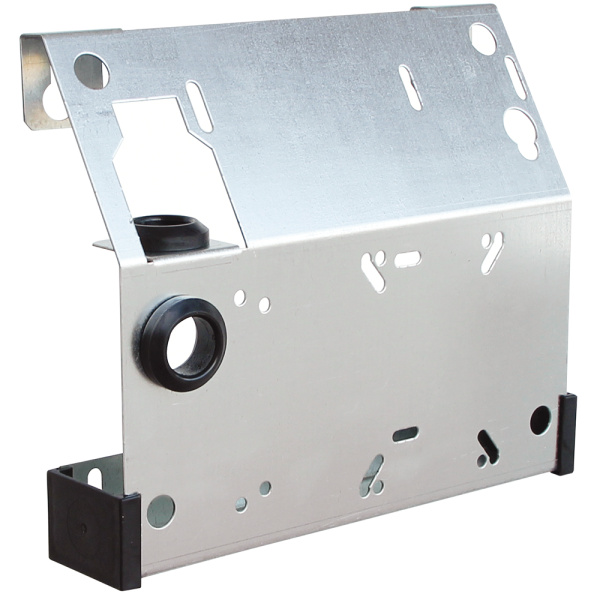

- c/w universal Support

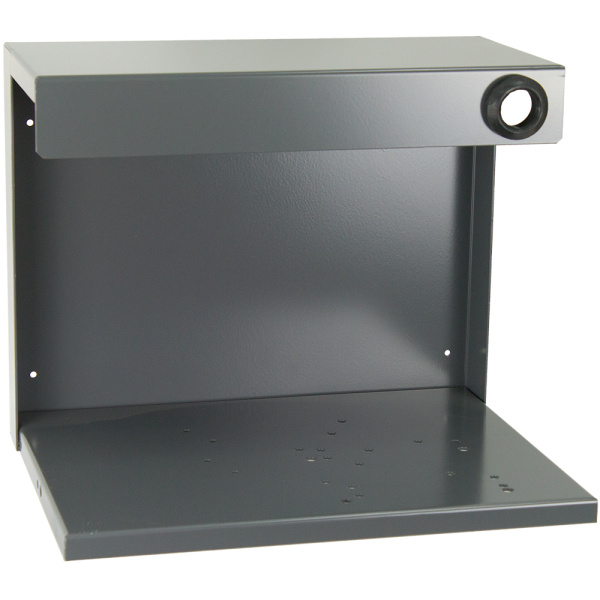

- c/w Base no. 4
Includes MG-80 Meter & AG100-230 VAC-100 LPM pump

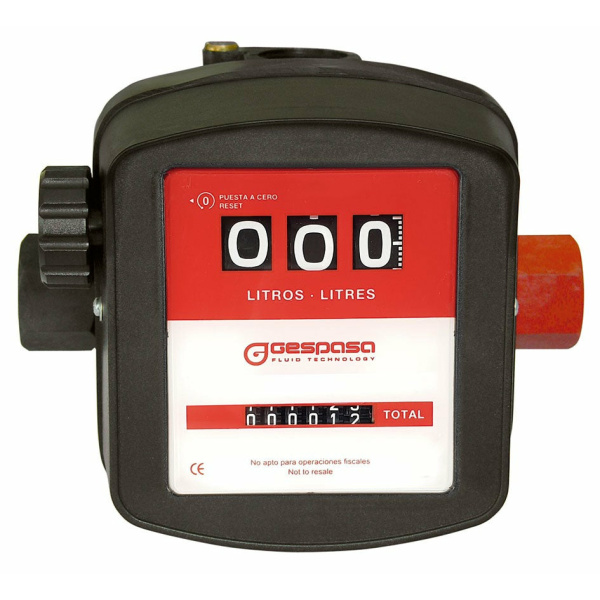

Meter MG-80
- Fireproof measuring chamber with oscillant disc
- Flow: 15-90 l/min
- Accuracy: ±1 %
- Partial indicator of 3 digits and totalizer of 6 digits
- Maximum operation pressure: 3,5 bar
- Maximum temperature: 60 ºC
- Minimum temperature: -10 ºC
- Polyamide + Fibreglass housing
- Connection 1″ GAS (BSP) with 3 inlets and 2 outlets
- It is supplied with 2 additional Male/Female 1″ GAS (BSP) adapters (other threads under order). The 1″ GAS (BSP) red adapter has built-in the filter-sieve of 350 µm (micron).
- It is suitable for hydrocarbon liquid (please, consult other liquids).
- For private use, not suitable for fiscal operations
Size and weight (approx.):
- Dim.: 150x150x170 mm (length x width x height)
- Weight: 1.6 kg
—————————————————————————————
Pump AG-100 230 VAC · 100 l/min
- Self-suction – self-priming. Eccentric of self-adjusting blades
- With recirculation bypass
- Suction: 2.7 m · Delivery: 30 m
- Priming pipe suction: 5 m
- Free flow: 100 l/min
- Consumption: 4-6 A
- Motor: 1 kW 230 VAC 50/60 Hz single-phase self-ventilated
- 1,500 rpm
- With thermal protector
- S1 Continuous duty
- IP-55 Protection
- Connection through F1″ (BSP) threads and flanges
- ON/OFF luminous switch with IP-55 protection
- 3 m electric cable with homologated plug
- Anti-rust treatment
Size and weight (approx.):
- Dim.: 365x165x245 mm (length x width x height)
- Weight: 15.15 kg
