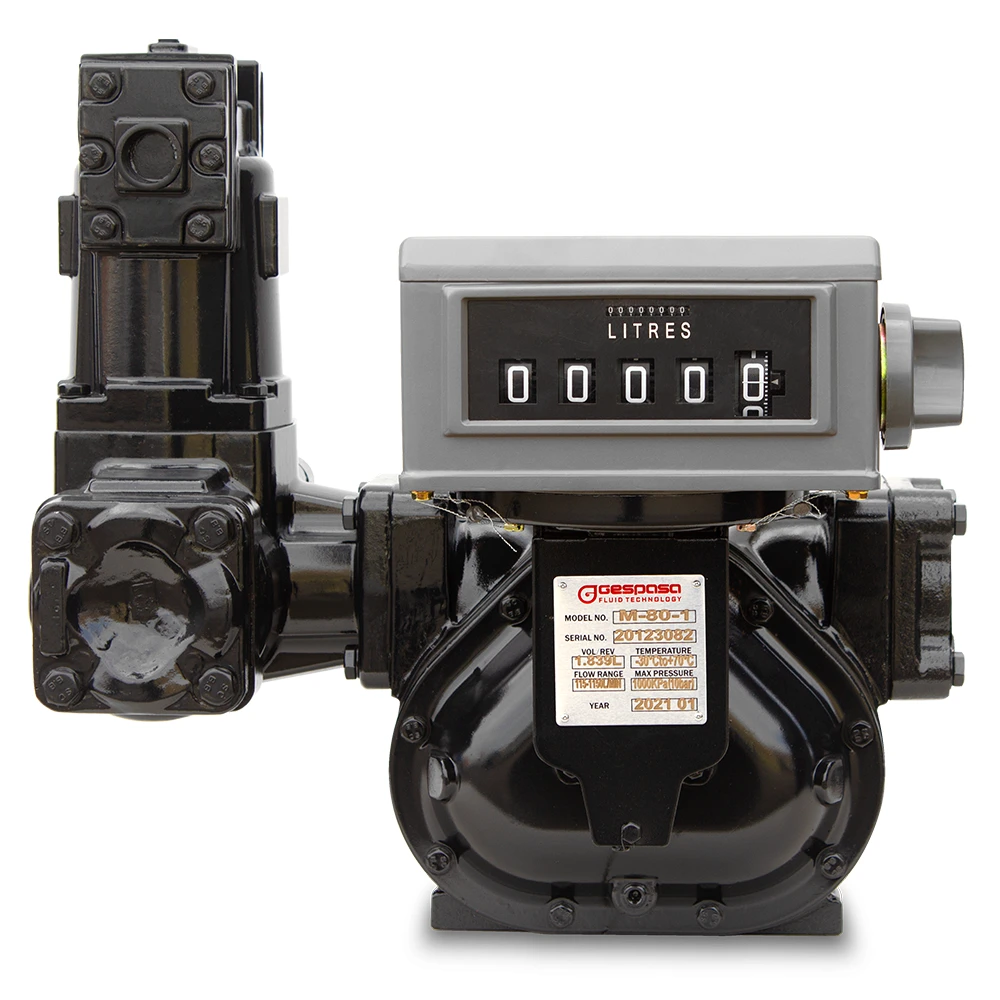

M-80 HIGH FLOW MECHANICAL METER (115-1150 L/min)

• The M series meter is a positive displacement meter for liquids. It is designed for liquid measurement both in transfer and process control. Because of its design, it is easy to keep and can suit a wide range of applications.
• The M series rotary flow meter has a simple and efficient design consisting of a housing and three rotors that rotate in unison (at the same time) within the measuring chamber.
• The absence of wear, from no metal-to-metal contact inside the chamber, eliminates any deterioration in accuracy and provides a long service life.
• The rotors are composed of bearings inserted into two bearing plates, where at the end of each rotor shaft there is a timing gear. The timed rotation between each rotor is then transferred through the calibration adjuster to the register, which gives a consistent and superior measurement of accuracy.

FEATURES

• It has built in an air eliminator.
• The excellent stepless adjusting device allows a micro-adjustment of the meter.
• High accuracy and repeatabiliy over the widest range of flow, superior accuracy at constant flow;
• Low maintenance, no metal-to-metal contact in measuring chamber, long life service;
• Accuracy regardless of the pressure fluctuations, temperature variation, viscosity;
• Aluminium body, Viton seal;
• Standard measurement in Litres / US GAL / IMP GAL (please, ask for it when ordering);
• It is available its pulser version;
• It includes a strainer with a mesh of 80/170 μm (micron).
