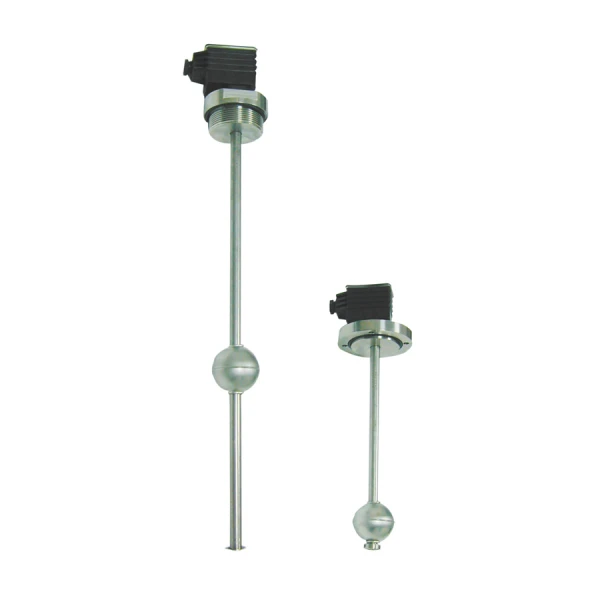

SL2 FIA – TIA…CVS1/CVS2 – Stainless steel level sensors 4-20mA output

SL2 FIA – TIA…CVS1/CVS2 – Stainless steel level sensors 4-20mA output

Description
Téléchargements

Body material	Acier inoxydable
Float material	Acier inoxydable
Mounting material	Acier inoxydable
Seal material	FKM
Distance	SL1 – 15 mm / SL2 – 10 mm
Sortie	4-20 mA
Montage	FIA – Flange Ø 92 / TIA – Thread G2”
Signal converter	CVS1 – Connector CVS2 – Box 92 mm × 92 mm
Raccordement électrique	IP65 EN60529 – PG11
Alimentation électrique	24 Vdc ±10%
Temperature range	-10°C +80°C
Pression maximale	10 bar
Fluid specific gravity	0.8 kg/dm³
Fluid viscosity	150 cSt
Size	Min. length 300 mm – Max. lenght 2500 mm

Documents sur les produits

Data Sheet
