Mounting kit MK DUT-E is designed for installing sensors in fuel tank. Parts in the MK DUT-E help in quick and accurate sensor mounting. Elastic rubber gasket under mounting plate ensures tightness at any temperature. Depending on the thickness and material of the tank, you can use conventional screws or bolts. Threaded rivets are provided for mounting on metal tanks with thin walls. The bottom plug provides additional rigidity of the DUT-E mount in the tank. Sealing prevents unauthorized interference with the sensor.
Mounting set MK DUT-E additional set

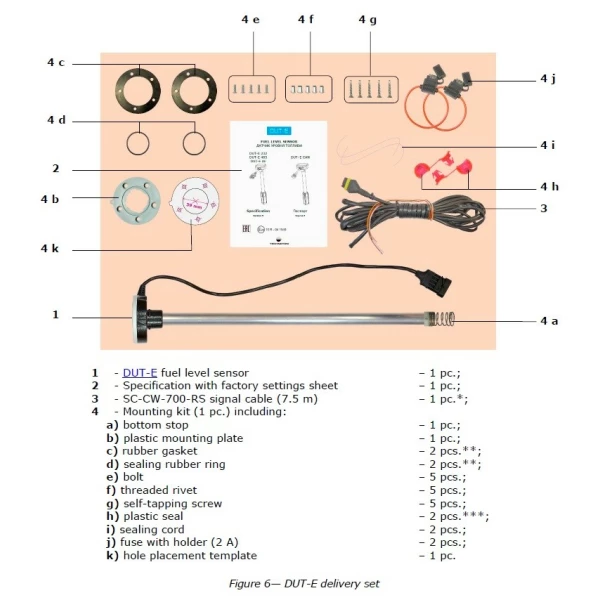

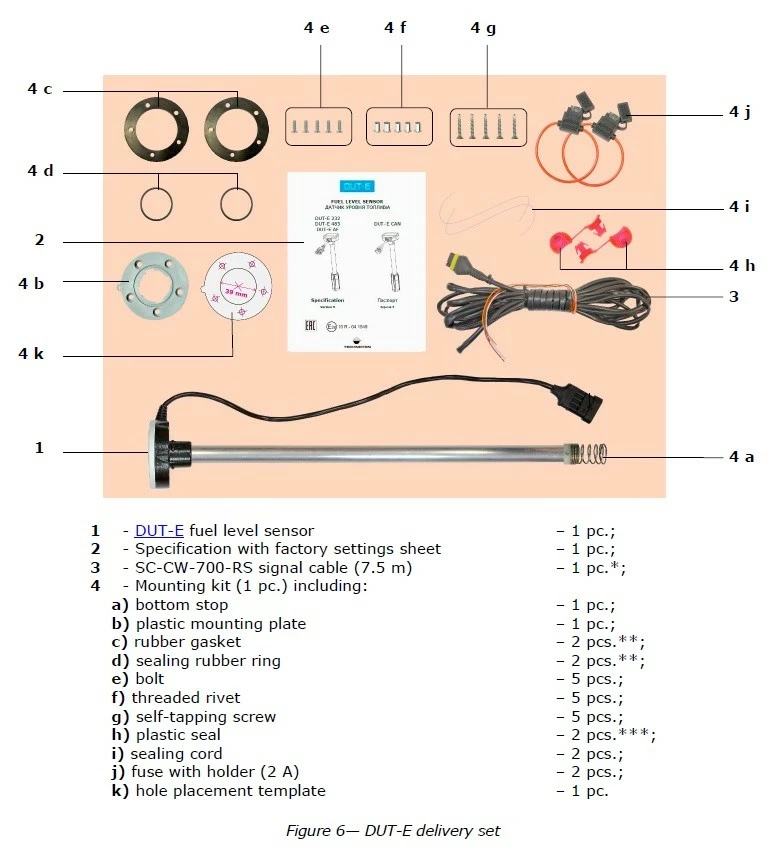

The mounting kit for DUT-E is included in the delivery kit of DUT-E.
You thus receive the DUT-E fuel level sensor including the corresponding mounting kit

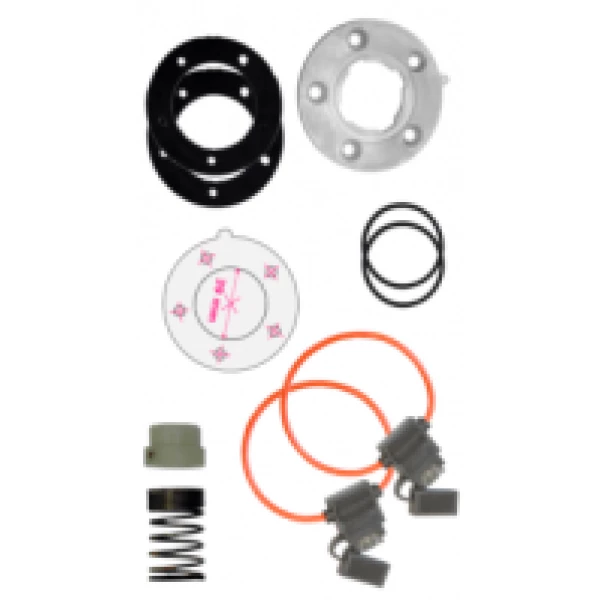

Mounting set MK DUT-E set
- bottom cap - 1 piece
- plastic mounting plate - 1 piece
- template for placing holes - 1 piece
- rubber gasket - 2 pieces
- rubber sealing ring - 2 pieces
- bolt - 5 pieces; threaded rivet - 5 pieces
- self tapping screw - 5 pieces
- plastic seal - 2 pieces
- sealing cord - 2 pieces
- fuse with holder (2 A) - 2 pcs.
- is used for DUT-E installation and 1 st. is a spare part.
Can be completed with a 4 mm thick gasket. Exterior of seal may differ.
