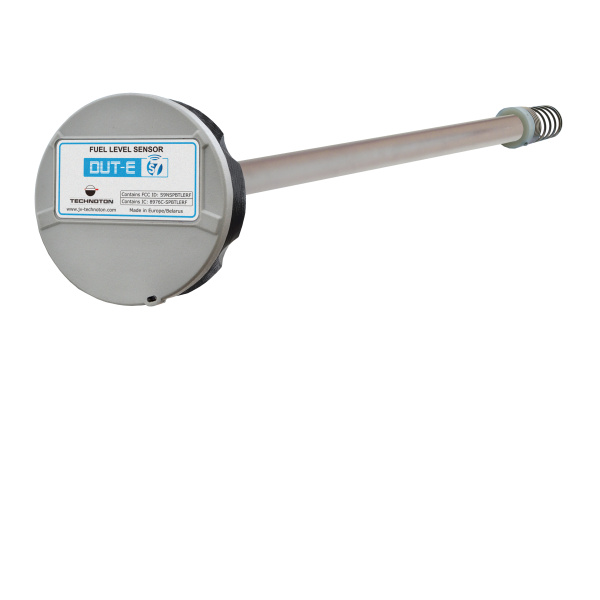

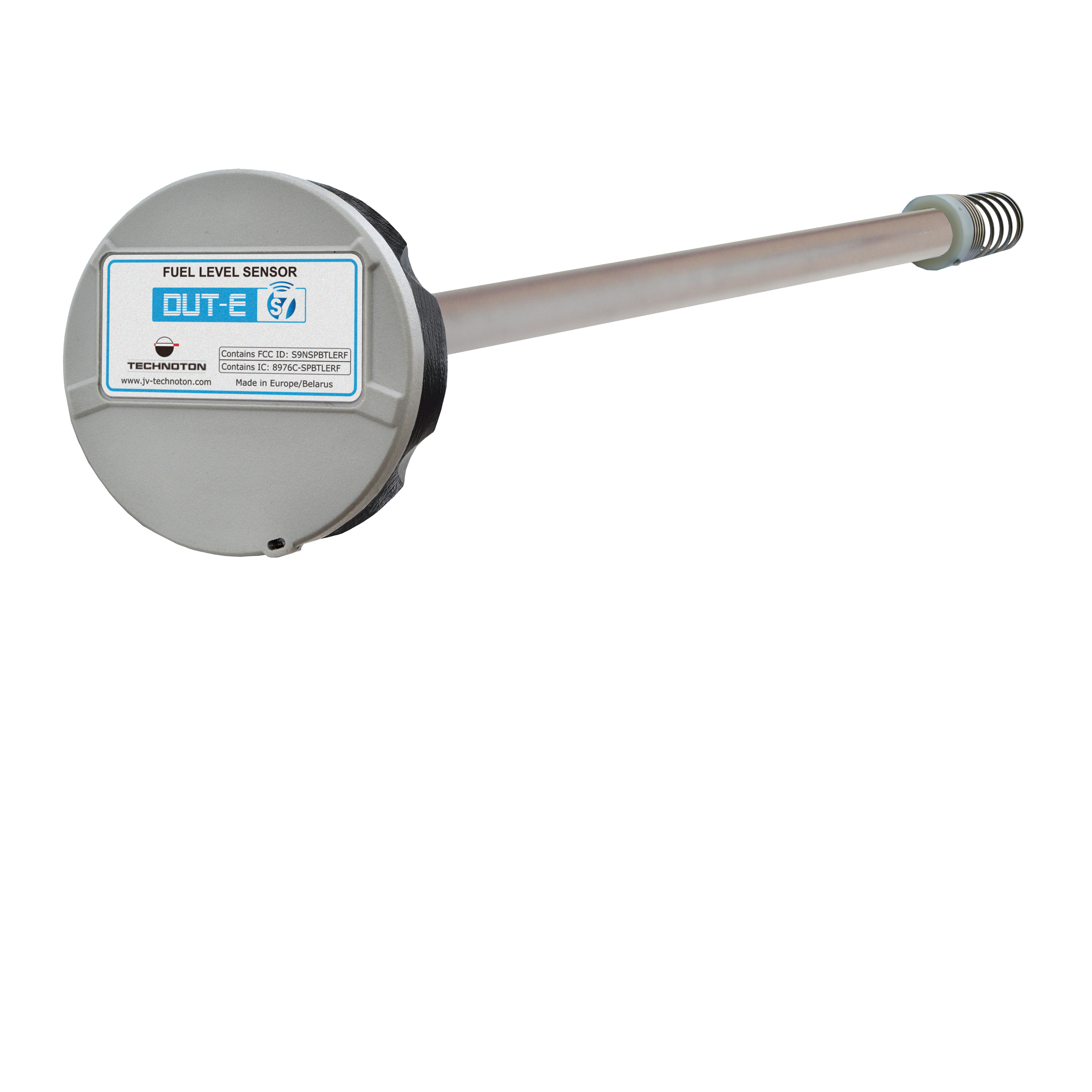

The wireless DUT-E S7 sensor can be used to measure the current fuel volume and changes in a fuel tank. Used as part of the vehicle telematics system (GPS vehicle tracking system), the DUT-E S7 provides reliable information on remaining fuel volume, tank volume and drained volumes, and helps fleets establish clear fuel accounting and prevent fuel theft. tank of the vehicle. DUT-E S7 wireless fuel level sensor is also used for fuel level monitoring in stationary tanks.
Wireless data transmission is performed with S7 technology via BLE channel. The BLE signal from the DUT-E S7 can be received by a compatible vehicle tracking unit (telematics unit) and / or any Android device.
The DUT-E S7 can also be used as a "night watchman" to alert the driver of fuel theft from the vehicle's tank, such as when parking at night.
Benefits of DUT-E S7:
- wireless data transfer with S7 technology via BLE (Bluetooth 4.X Low Energy);
- operation in BLE radio mode without pairing with receiver - simultaneous data transmission to telematics unit, smartphones, tablets with Bluetooth
- built-in battery - DUT-E S7 operates without an external power supply;
- very low power consumption enables autonomous operation of the sensor within 5... 10 years;
- explosion protection confirmed by "On the safety of equipment for use in explosive atmospheres"
The DUT-E S7 has all the advantages of "classic" DUT-E level sensor models:
- Shorten/extend length of measurement probe;
- lower spring for greater rigidity of mounting in tank;
- mesh filter for probe protection against water and mud in a tank;
- Digital self-diagnostic function for quality control of sensor operation;
- automatic temperature correction with adjustable coefficient;
- automatic compensation of ambient temperature effect on sensor components.
- holes for seal sensor to prevent unauthorized disassembly;
- Bayonet mounting plate reduces installation time
- ergonomic grooves for comfortable grip when attached in bayonet fitting;
- full set of mounting accessories;
- Compliance with European and national automotive standards.
Accessories:
- Mounting kit MK DUT-E
- Service adapter S6 SK и S6 BT
- Additional section DUT-E
- Summator DUT-E SUM
We can manufacture sensors of any insertion length, up to 1000 mm (price + 10%), Maximum extension of measuring probe - 3000 mm, from 1000 mm on request.
*Install the DUT-E in the geometric center of a fuel tank.
-

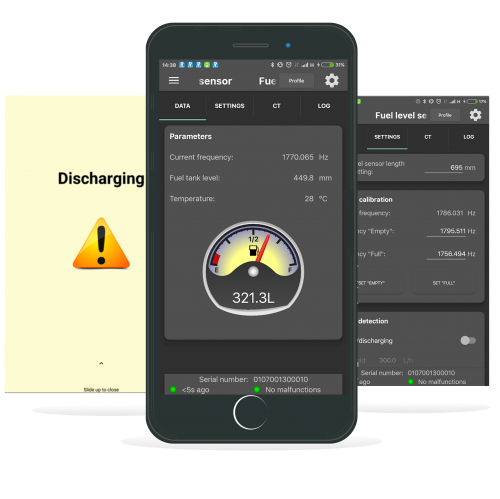

Features of the Fuel Tank Monitor app:
- wireless sensor, data transfer via BLEchannels
- displaying sensor information (serial number, firmware version, address within S7 network);
- Save and upload sensor profile from / to other Android devices;
- keep the calibration parameters of the fuel level sensor '"empty" / "full";
- keep calibration table fuel tank
- Display messages about filling/discharging the fuel tank;
- fuel level sensor self-diagnosis information;
- Data logging of the DUT-E S7 fuel level sensor.
