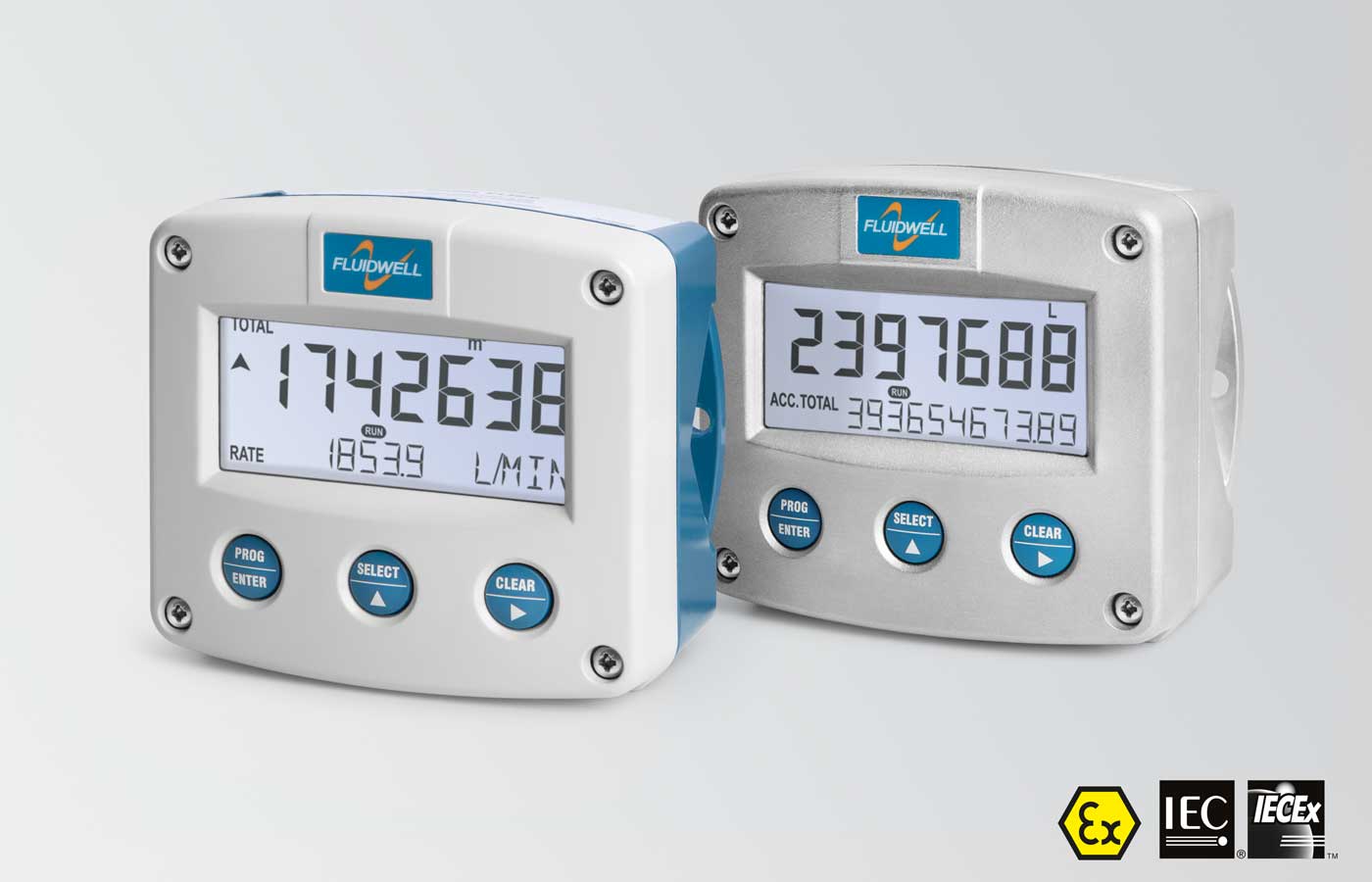

Fluidwell F Series - F110 Intrinsically Safe - Flow rate Indicator / Totalizer

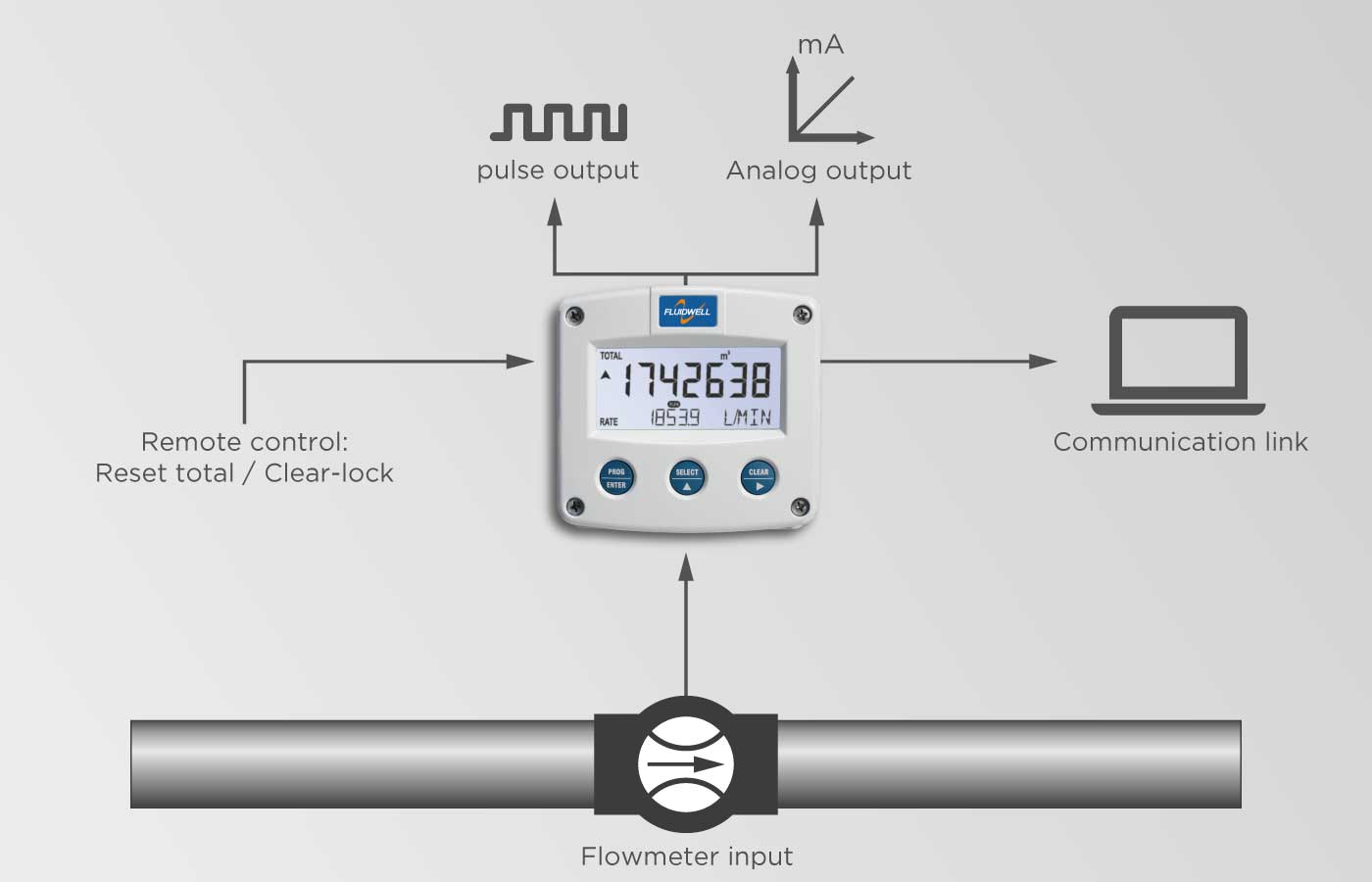

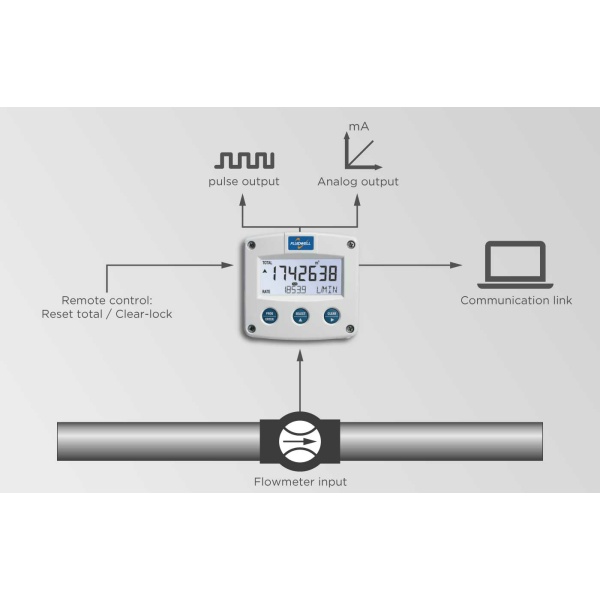

With analog and pulse outputs.

  • Analog and pulse outputs.

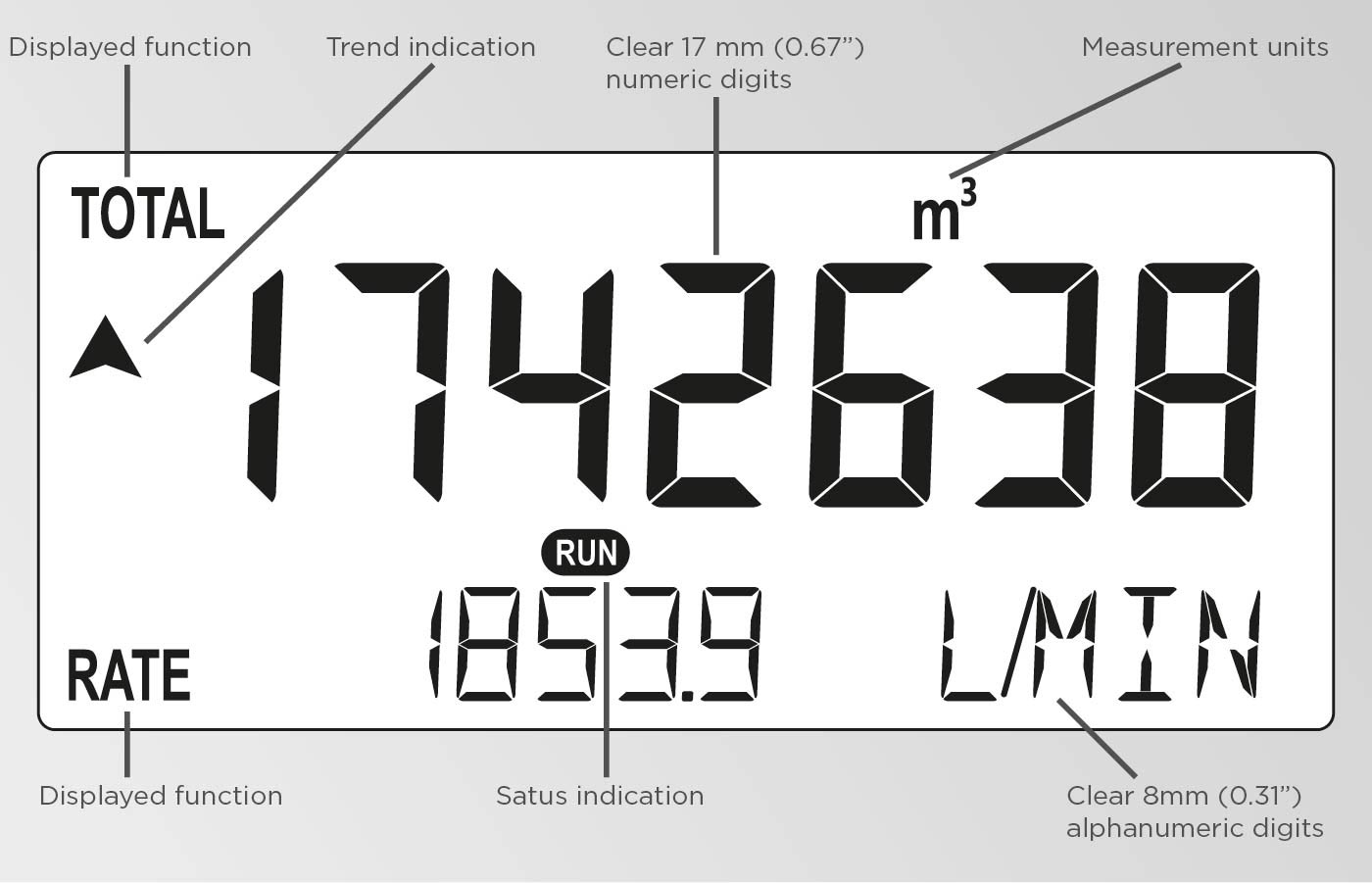

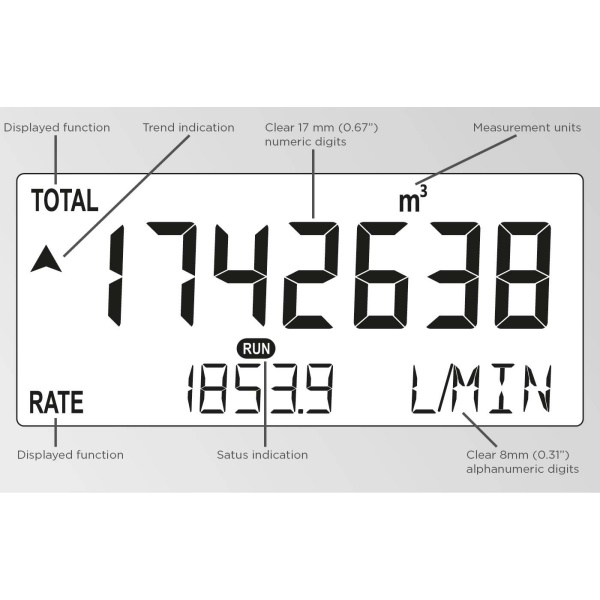

  • Displays total and flow rate simultaneously.
  • Large digit selection for flow rate or total.
  • Flow rate: seven 17mm (0.67″) or 8mm (0.31″) digits.
  • Total - resettable: seven 17mm (0.67″) digits.
  • Accumulated total - not resettable: eleven 8mm (0.31″) digits.
  • Separate engineering units for flow rate and total on the display.
  • Remote control input to reset total or to lock the "clear total" button.
  • LED backlight.
  • Intrinsically safe according to ATEX and IECEx.
  • GRP, Aluminum or high grade stainless steel enclosure.
  • Auto backup of settings and running totals in EEPROM memory.
  • Ambient temperature: -40°C to +80°C (-40°F to 176°F).
