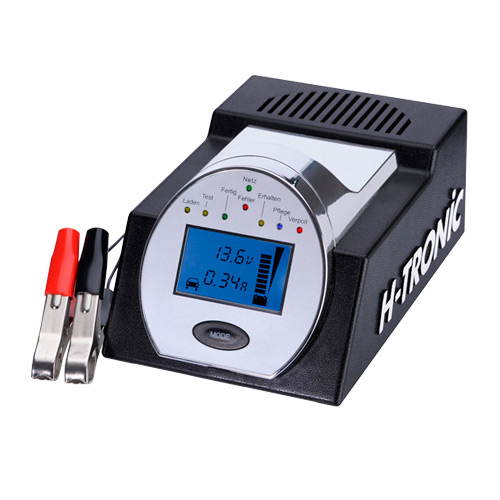

The 3-in-1 multifunction charger HTDC 5000 - innovation for charging, onmaintenance and testing of lead-acid batteries. Conventional charging is not enough to give a battery constant power and an active, long life. A battery needs more: a customized charging process, effective care and continuous monitoring of all functions. The new 3-in-1 multi-charger HTDC 5000 optimally fulfills all these tasks. Small and something big - big in terms of performance: a perfect high-tech service center for all 12 V lead-acid batteries, which will work reliably in the car, motorcycle, scooter or quad bike.
Loading technology and advanced software control and automatically monitors the charging process. The battery Can be plugged in for months at a time. Overcharge is not possible. is reduced by an activator, specially taak designed hardware. This guarantees a long leven battery life.
Technical data:
- Charge current selectable, up to 1 A for motor mode, 2.5 A, for golf car mode and max. 5 A for auto mode
- Battery capacity: motor mode: 5 to 15 Ah (maximum charging current 1 A) golden cart mode: 15 to 30 Ah (maximum charging current 2.5 A)
auto mode: 30 to 100 Ah (maximum charging current 5 A) - For 12 V lead-acid batteries (acid, gel, AGM microfleece, EXIDE
- Blue backlit, multi-function LCD display
- Display of battery voltage, charging current, battery icon and charging capacity in the display
- Multi I / U charging characteristic (I phase, phase U1, U2 Phase
- Protection against reverse polarity and short circuit by electronic protection circuit
- Integrated lead battery activator (automatic battery maintenance mode / Desulfation
- Drop Charging
- Battery test function / defect detection
- 8 LED indicators for power, fault, reverse polarity, load, test, maintenance, ready
- Battery can remain permanently connected (ideal during the winter season)
- Operating voltage: 230 V / 50 Hz
- Power consumption: max. 80 VA
- Weight: approx. 980 g
- Application temperature: -15 ° C to +40 ° C
- Housing with integrated carrying handle
- Dimensions: (W x H x D): 20.5 x 12.5 x 10 cm
- Manual in German, English, French and Dutch
