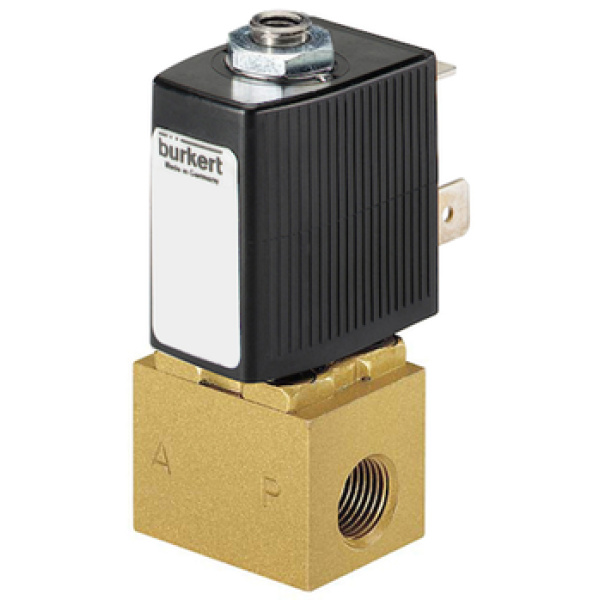

Solenoid valve 3/2 way Type: 6012

Direct acting 3/2-way miniature solenoid valve is available in two versions. Type 6012 standard is used for blocking, metering, filling and ventilating neutral gases and liquids, especially for controlling single-acting pneumatic actuators or for technical vacuum. The modular valve can be mounted individually or in block assembly on a multiple manifold. Type 6012P is designed as a special control valve for direct attachment to externally controlled pneumatic actuators. It consists of the Type 6012 solenoid actuator and a special connection housing with banjo bolts for easy connection to the actuator's control air port. The valve is equipped with manual lifting as standard. Pressure 0 ... 10 bar. DN 1.2 mm ... DN 1.6 mm. M5, G1 / 8, G1 / 4, subbase, banjo bolt connection. Coil distance of 21 mm when mounted on manifold.
