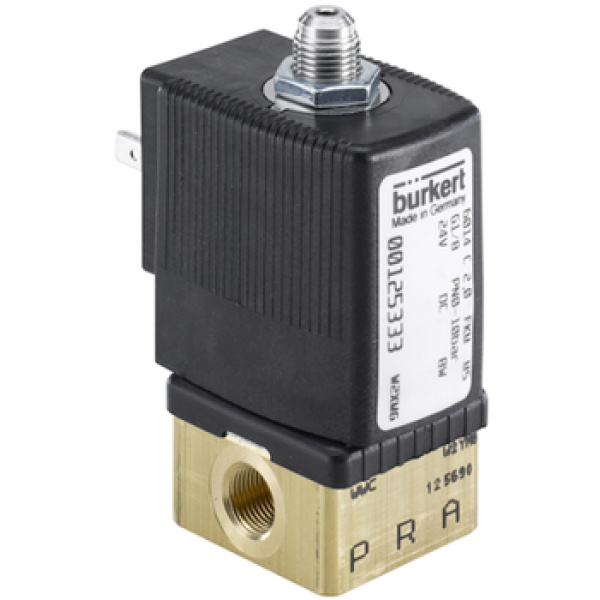

Solenoid valve 3/2 way Type: 6014

  • Directly operated 3/2 way solenoid valve
  • Operation: normally open or normally closed
  • Pressure range 0-10 bar max.
  • Liquid temperature from -10 ºC to +100 ºC
  • Ambient temperature from -10 to + 55 ºC
  • Body material Brass, stainless steel
  • Material FKM gasket
  • Coil material Polyamide (class B)
  • DC power consumption: 8 W, CA: 24 VA (starting point), 17 VA (operating)
  • Protection class IP65, NEMA 4
  • Electrical connection Type 2508 connector Format A
