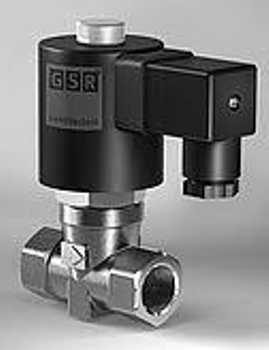

Solenoid valve 2/2 way Type: BR46

Servo-controlled piston solenoid valve
Operation: 2/2 way standard. Closed (optional Open Standard)
Applications: Clean and neutral liquids and gases
Housing material: stainless steel
Internal metal parts: stainless steel
Sealing materials: PTFE
Nominal diameter DN8 mm
Pressure: 1-100 bar
Temperature: liquids: -40 ° C ... + 80 ° C
Environment: -40 ° C ... + 50 ° C
Power supply: AC 24V, 110V, 230V - DC 12V, 24V
Other supply voltages on request
Connections: 1/4″, 3/8″, 1/2″ threads

Piston operated 2/2 way solenoid valve for high pressure. A minimum pressure (1 bar) between inlet and outlet is required for operation. Standard Operation Standard Closed. Standard version available. Restricted. Material Acc. Inox. Maximum pressures up to 100 bar. Passages DN8 mm Threaded connections 1/4 ", 3/8", 1/2 ".

Brand	GSR Ventiltechnik

Product Documents

Datasheet
