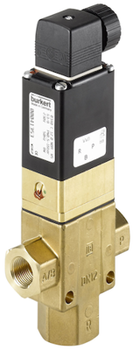

Solenoid valve 3/2 way Type: 3040

Servo-controlled 3/2-way piston valve. A minimum differential pressure is required to operate the valve. A pilot valve uses a 3/2-way anchor valve with fluid separation (Type 0331) that requires no maintenance. The function of the valve can be easily switched from NC to NO by 180° rotation of the 3/2 way pilot. The 0340 valve is equipped with a manual control, convenient for commissioning and testing. To meet power requirements, all coils can be supplied with electronic power reduction or in impulse configuration. The switching state can be signaled via position feedback in the form of a binary signal or NAMUR. In combination with a connector according to DIN EN 17301-803 form A, the valves meet the requirements of protection degree IP65 / 67. Nominal diameter up to DN40.
