Direct actuated 3/2 way normally closed solenoid valves, operated by a roller shutter and designed for easy and safe adaptation to Bürkert process valves. Ideal for pilots with compressed air.

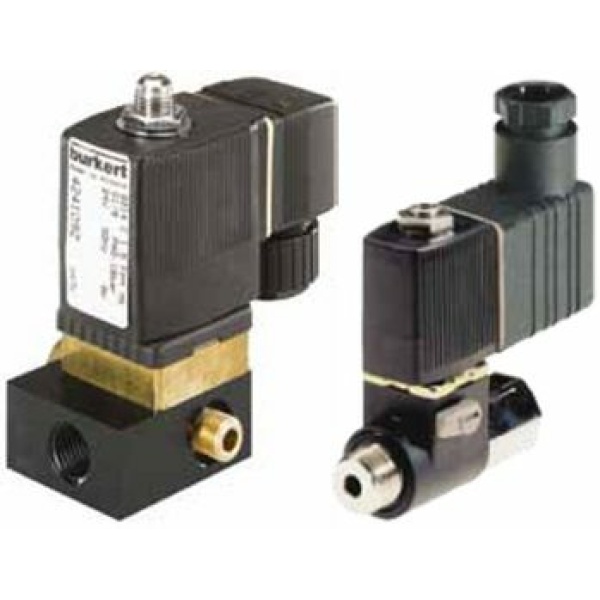

Solenoid valve 3/2 way Type: 6012/6014
- Pressure range: 0-10 bar
- Liquid temperature: -10 ... + 100 ºC
- Ambient temperature: +55 ºC max.
- Body material: 6012 polyamide, 6014 brass, aluminum
- Adjustable mounting hardware: Nickel plated brass
- Sealing material: 6012 NBR banjo fitting, FKM valve, 6014 FKM
- Coil material: 6012 epoxy resin, 6014 polyamide
- Consumption: 6012 CC 4 W, CA: 9 VA (starting point), 6 VA (operating)
6014 CC 2 W, CA: 11 VA (starting point), 6 VA (operating),
CC 8 W, CA: 24 VA (starting point), 17 VA (operating) - Protection class: 6012 IP65, 6014 IP65, NEMA 4
- Electrical connection: connector type 2507 Format B,
Connector Type 2508 Format A
