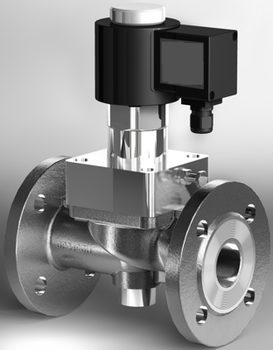

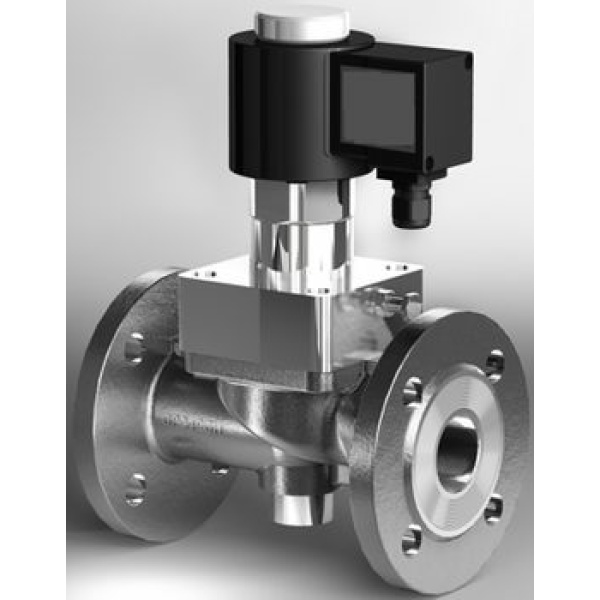

Solenoid valve with flange connection 2/2 way Type: BR24

Force-pilot operated piston valve
Operation: 2/2 way norm. Closed (Norm. Open optional)
Applications: Clean and neutral liquids and gases
Housing material: cast iron, cast steel, stainless steel.
Internal metal parts: brass and stainless steel
Sealing materials: NBR, FKM, EPDM, PTFE
Diameter DN 65 ... DN 300 mm
Pressure 0 - 40 bar
Temperature: Liquids: -30 ° C ... + 80 ° C
Environment: -30 ° C ... + 50 ° C
Power supply: AC 24V, 110V, 230V - DC 12V, 24V
Other supply voltages on request

2/2-way solenoid valves. Force-pilot driven piston design. No differential pressure is required for operation. NC standard function, NO (on request). Body materials Stainless steel, cast iron, cast steel. Maximum pressures up to 40 bar. DN65 ... DN300 mm passages, flange connections.

Brand	GSR Ventiltechnik

Product Documents

BR24_Eu_En-1.pdf
