2/2 way solenoid-operated solenoid valve for very high temperature liquids up to 300°C. Direct actuation without necessary pressure between inlet and outlet. Standard Operation Standard Closed. Standard version available. Restricted. Maximum pressure 40 bar. Passages DN13, 25, 40, 50 mm. Threaded connections 1/4", 3/8", 1/2", 3/4", 1", 1" 1/4, 1" 1/2, 2".

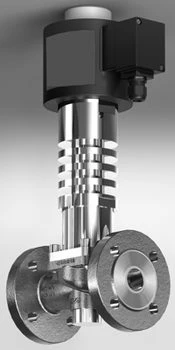

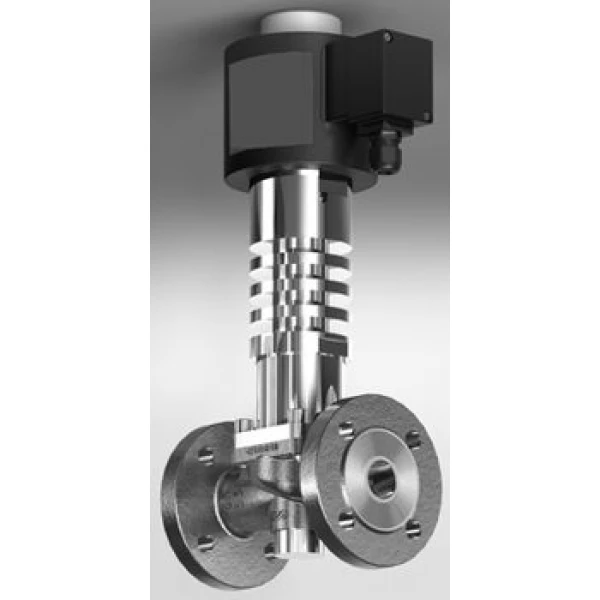

Solenoid valve 2/2 way Type: BR2 / 164
- Servo-controlled piston solenoid valve
- Operation: 2/2 way standard. Closed (optional Open Standard)
- Applications: Clean and neutral liquids and gases
- Housing material: brass, stainless steel.
- Internal metal parts: brass, stainless steel
- Sealing materials: metal
- Nominal diameter DN13, 25, 40, 50 mm
- Pressure: 0 - 40 bar
- Temperature: liquids: -40 ° C ... + 300 ° C
- Environment: -40 ° C ... + 50 ° C
- Power supply: AC 24V, 110V, 230V - DC 12V, 24V
- Other supply voltages on request
- Connections: 1/4", 3/8", 1/2", 3/4", 1", 1" 1/4, 1" 1/2, 2" threads
