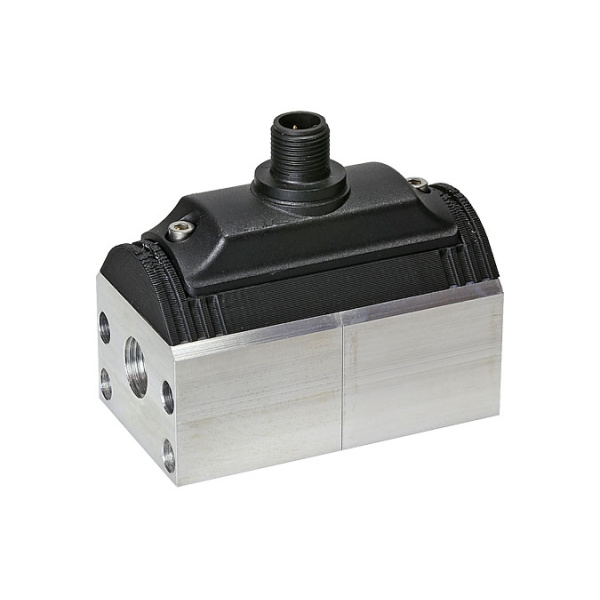

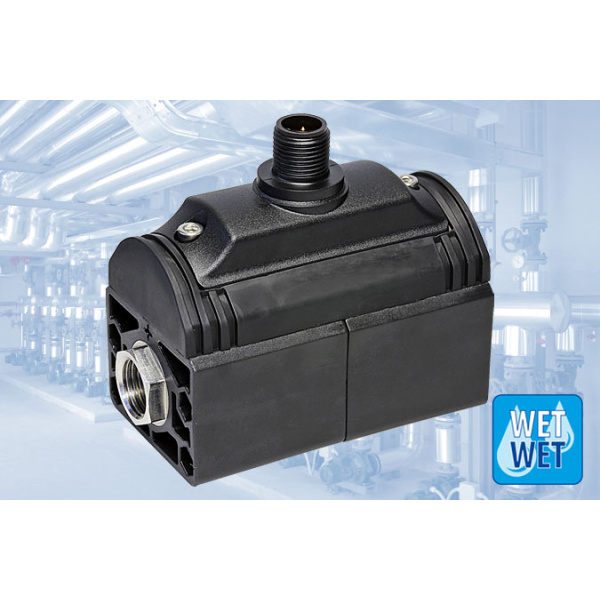

Modular universal differential pressure transmitter for liquids and gases

Modulaire universele drukverschiltransmitter voor vloeistoffen en gassen - Image 2

Modulaire universele drukverschiltransmitter voor vloeistoffen en gassen - Image 3

Modular universal differential pressure transmitter for liquids and gases

Description
Downloads

Input: Differential pressure (delta P)
Range: 0 ... 1 Bar to 10 Bar, other ranges on request
Output: 4...20 mA / 0...10 VDC
Supply voltage: 9...35 VDC / 12...35 VDC / 12...24 VAC
Accuracy: see technical data
Process connection: 2x 1/4″ connection (VA inserts)
Medium: liquids and gases
Electrical connection: multiple plugs / cable
Temperature range: -40...+80 °C (in operation)
Configuration: Software
Housing material: PBT GF 30 / 1.4571 / aluminum (anodized)
Protection class: at least IP65
