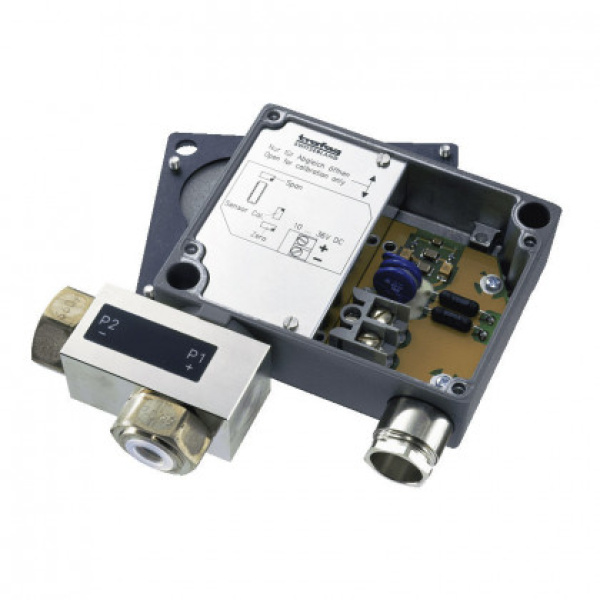

Differential pressure transmitter Navitrag ND-8204 ND2.5 / 0 ... 2.5 Bar

Differential pressure transmitter Navitrag ND-8204 ND2.5 / 0 ... 2.5 Bar

8202.75.2210 / ND2.5
Material No.: 30111
Measuring range [bar]: 0...+2.5
Pressure connection: G1/4 BSP external
Sensor material: 1.4542
Sensor temp: -25...+125 °C
Accuracy (typ) FS, NLH (BSL): ±0.8%
Output: 4...20mA, 2-wire
Power supply: 24 V DC
Connection: Pg 13.5

High zero point stability
High resistance to pressure cycling
EMC protection, IEC 61000

Differential range (Bar)	-1 … 1.5, -1 … 5.0, 0 … 1.0, 0 … 2.5, 0 … 6.0
Output	4 ... 20 mA
System pressure max.	16, 2.5, 6
Pressure max.	15, 32, 6
Nutrition	12 … 34
Accuracy @25°c typ.	± 0.8
Brand	Trafag
