Accessory Kits DIN EN 61518 / IEC 61518

Transmitter Mounting Kits are normally containing:

Pressure Measurement: 2 Screws and 1 Seal Ring or 4 Screws and 1 Seal Ring
Differential Pressure Measurement: 4 Screws and 2 Seal Rings
The required bolt length results from manifold flange thickness b + min. required thread engagement at the instrument (9mm), but max. 14mm. Example: Manifold flange thickness 31.2mm (1.23″) + 9mm (0.35″), but max. 14mm (0.55″) = Min. 40.2mm (1.58″) and max. 45.2mm (1.78″). This results in a bolt length of 1 3/4″ (7/16-20 UNF screw) respectively 45mm (M10 screw).

When installing a Rosemount 2051/3051 Pressure Transmitters with CoplanarTM Flange, longer bolts are required: Flange thickness b (for example again 31.2mm) + min. 44.5mm (1 3/4″) and max. 48mm (1.89″) results in a bolt length of 3″ (76.2mm) – min. 75,7mm (2.98″) and max. 79.2mm (3.12″). Washers are required for Traditional Style Manifolds types H & T, because the bolt holes are slotted. The washer thickness is 1.5mm (0.06″). This needs to be considered when calculating the bolt length.

Available seal ring materials are: PTFE, Graphite and FKM (O-Ring)

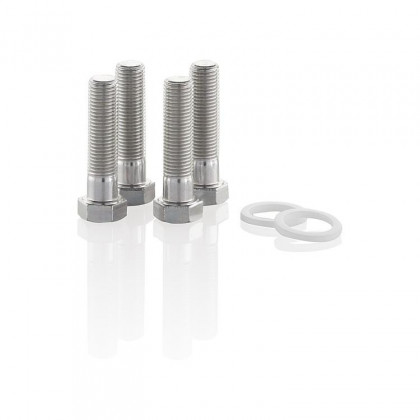

Part No.: AKS-HU4C-PAF44

AKS Transmitter Mounting Kit
–
H types of Screw: Hex Cap Screw
U Thread Size: 7/16-20 UNF
4 Numbers of Screws and Seal Rings: 4 Screws and 2 Seal Rings
C Material: Carbon Steel ASTM A449, types 1
–
PA Seal Ring DIN EN 61518 types A: PTFE
F44 Screw Length: 1 3/4″
