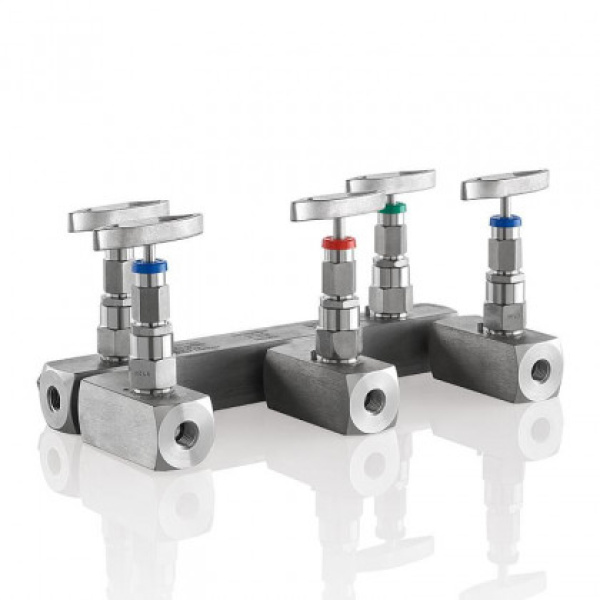

AS-Schneider Chart Recorder Manifolds are designed for the calibration of chart recorders (To measure flow, static pressure and temperature) for example on natural gas pipelines. The inlet connections (process connection) as well as the vent connection, as standard, are 1/4 NPT female threaded. The test/calibration ports 1/4 NPT female are plugged. The Chart Recorder Manifolds are available as 3-valve or 5 valve manifold.
Bore Size: 1/4″ (6.35 mm) – Roddable
Part No.: CR3-SAD
CR Chart Recorder Manifold
3 Quantity Bonnets: 3
S Material: 1.4401 / 1.4404 / 316 / 316L
A Stem Seal / Packing: PTFE
D Seat Material: POM
