CTRTA-D

CTRTA-D

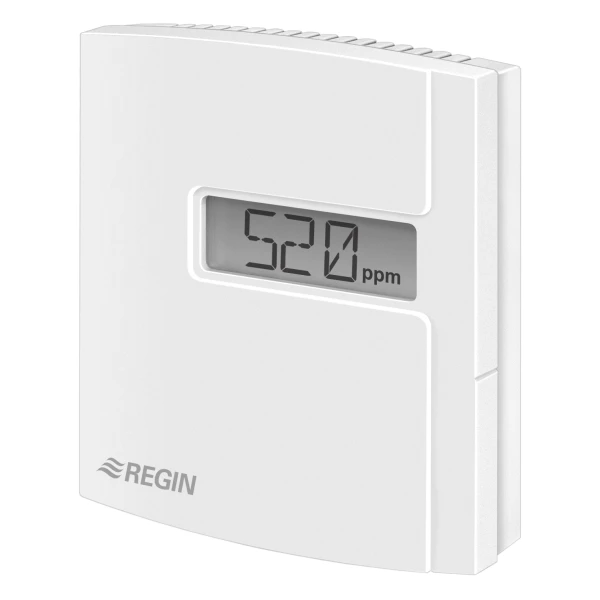

CO₂ and temperature transmitter with display

Beschrijving
Downloads

Specificaties

Specificaties voor CTRTA-D
Accuracy, temperature	± 0.4 °C (0…10 V), ± 0.3 °C (PT1000)
Output, temperature	0…10 V DC + PT1000
Output, CO 2	0…10 V DC
Display	Yes

Specificaties voor CO₂ and temperature transmitter, room mounting
Supply voltage	24 V AC/DC (22…26 V AC / 15…35 V DC)
Working range, CO 2	0…2000ppm
Accuracy, CO 2	< ± (50 ppm + 2 % of the measured value)
Working range, temperature	0…50°C
Power consumption	< 2.5 W
Energy consumption	< 0.5 Wh
Transformer power	≥ 5 VA
Mounting	Room
Dimensions	100 x 85 x 30.5mm
Protection class	IP30
