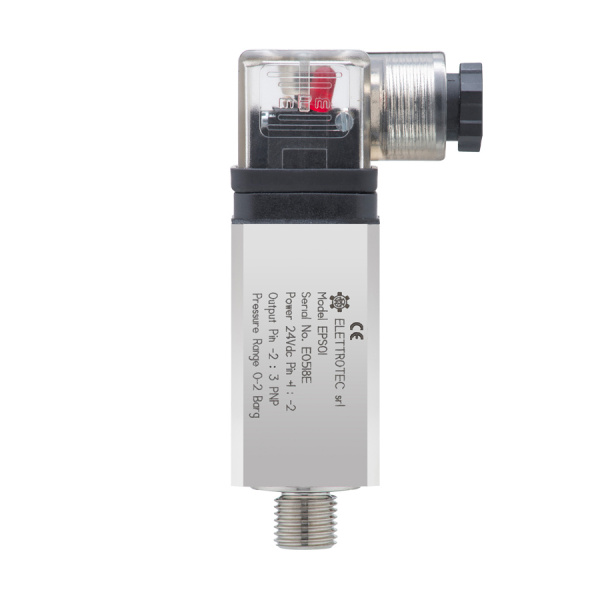

EPS01 – Electronic pressure switch with ceramic sensor

Power supply	24Vcc ±15%
Current consumption	12mA
Pressure range	0…2bar; 0…5bar; 0…10bar; 0…20bar; 0…50bar; 0…100bar; 0…200bar
Pressure indication	Bar
Burst pressure	7 bar; 12 bar; 25 bar; 50 bar; 120 bar; 200 bar; 400 bar (according to the model required)
Accuracy	±1.5% fs a 25°C
Materials of construction	Body: nickel-plated brass Sensor: piezoresistive ceramic cell Al₂O₃Seal gasket: NBR
Protection class	IP65
Electrical connection	DIN43650
Pressure port	G1/4 parallel
Output	1 NPN or PNP Open Collector Output, max 500mA; NO or NC contact
Temperature	-20°C…+80°C
Dimensions	30mm wide x 99mm high
Weight	250 grams
Certifications	CE
Harmonized standards	EN 61000-6-3; EN 55022+A1+A2; EN 61000-6-1, EN 61000-4-2+A1+A2; EN 61000-4-3; EN 61000-4-4+A1+A2; EN 61000-4-5+A1; EN 61000-4-6+A1
