Fluidwell B Series – B-ALERT Basic – Flow rate Monitor / Totalizer

With alarm / pulse output.

Compact design.
Displays instantaneous flow rate, total, accumulated total and alarm messages.
Two alarm values can be entered: low and high flow rate alarm.
Durable IP65 (Type4) field, wall or meter mount enclosure.
One 20mm (0.79″) and two 16mm(0.63″) knock-out hole cable entries.
“Know one, know them all” configuration structure.
Easy reading and programming with clear alphanumerical display.

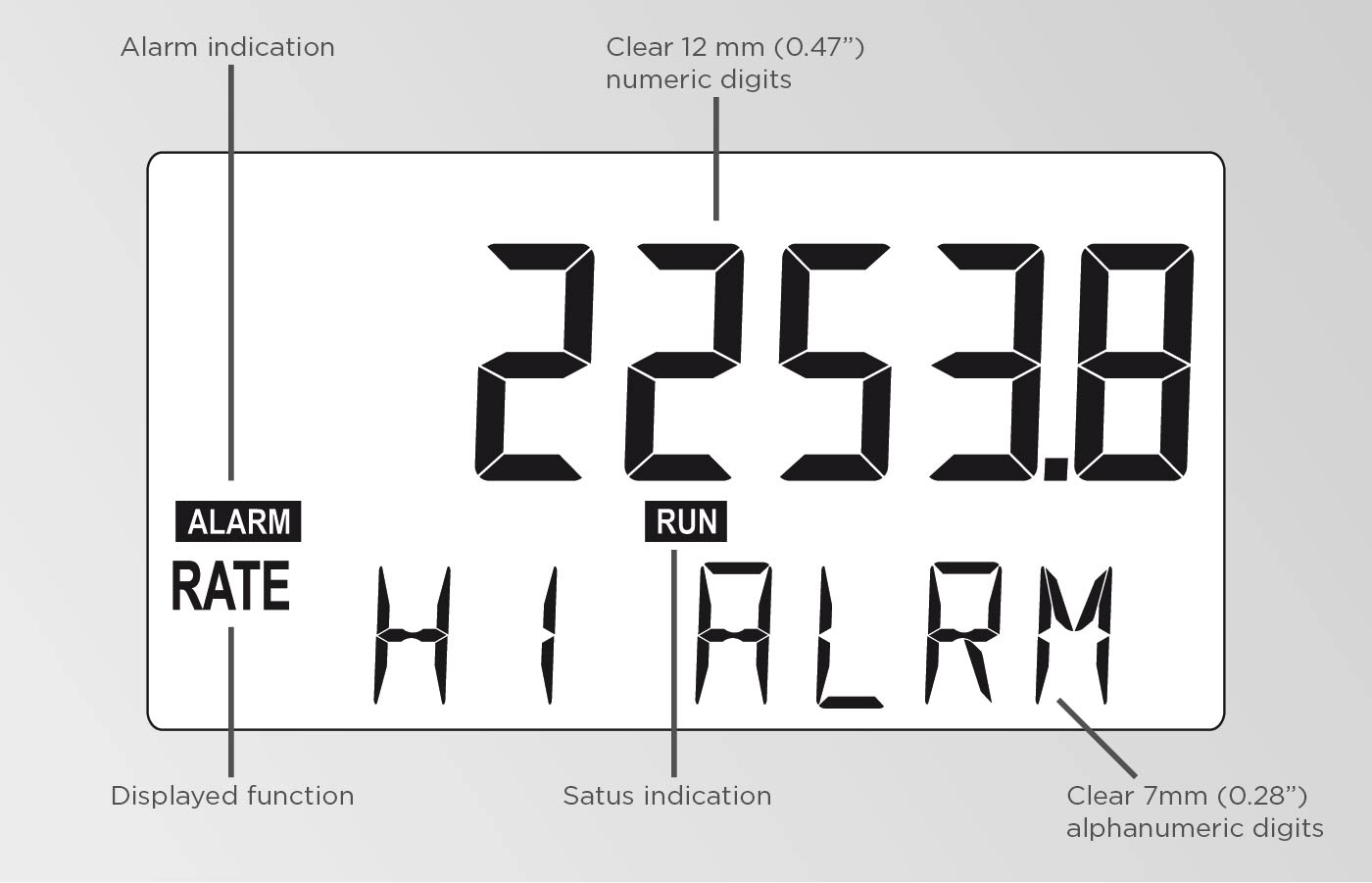

Clear 12mm(0.5”) numeric digits and 7mm(0.3”) alphanumeric digits.
Bright LED backlight.
Auto backup of settings and running totals.
Lithium AA battery and 10 – 30V DC power supply.
Sensor supply: 8.2V DC.

Beschrijving
Downloads

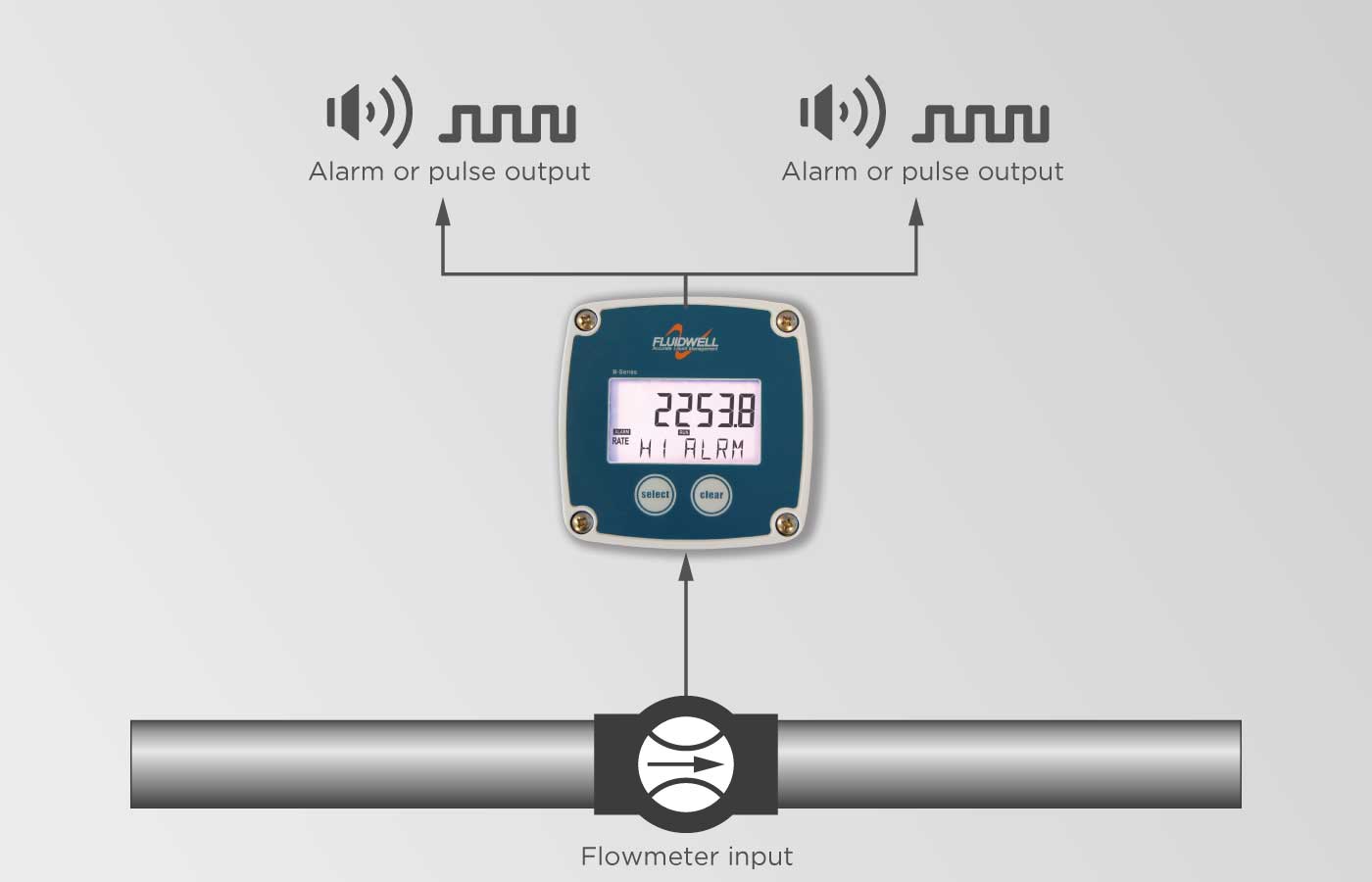

The B-Alert is a flow rate indicator and totalizer with continuous flow rate monitoring feature. It offers the facility to set one low flow rate and one high flow rate alarm value. The display shows flow rate, total, accumulated total and alarm messages. On-screen engineering units are easily configured from a comprehensive selection.

Advantages

The B-Series is our most cost effective display but with all the benefits you may expect from a Fluidwell product: It’s durable, reliable and very easy to operate. Basic with a capital B!
Familiar easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.

Product Documents

Datasheet

Manual
