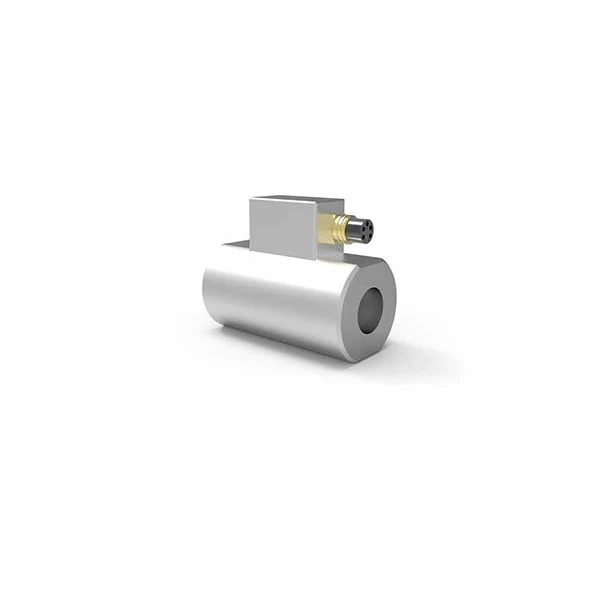

HM Subsea – Turbine Flow Meters for Subsea Immersion Applications – 0.3 tot 500 l/min

Measuring Ranges0.3 up to 500 l/min

Measuring Accuracy up to ±0.1 %

Repeatability ±0.05 % (under the same conditions)

Linearity ±1 % of actual flow

Viscosity Range 0.8 up to 30 mm²/s

Materials

• Housing: as per 1.4404 [AISI 316L] (others on request)
• Wheels: as per DIN 1.4460 [AISI 329] (others on request)
• Bearing: Tungsten carbide sleeve bearing

Pressure up to 1,400 bar [20,300 psi]

Medium Temperature -40 °C up to +60 °C [-40 °F up to +140 °F]
